32A MPPT
UPS

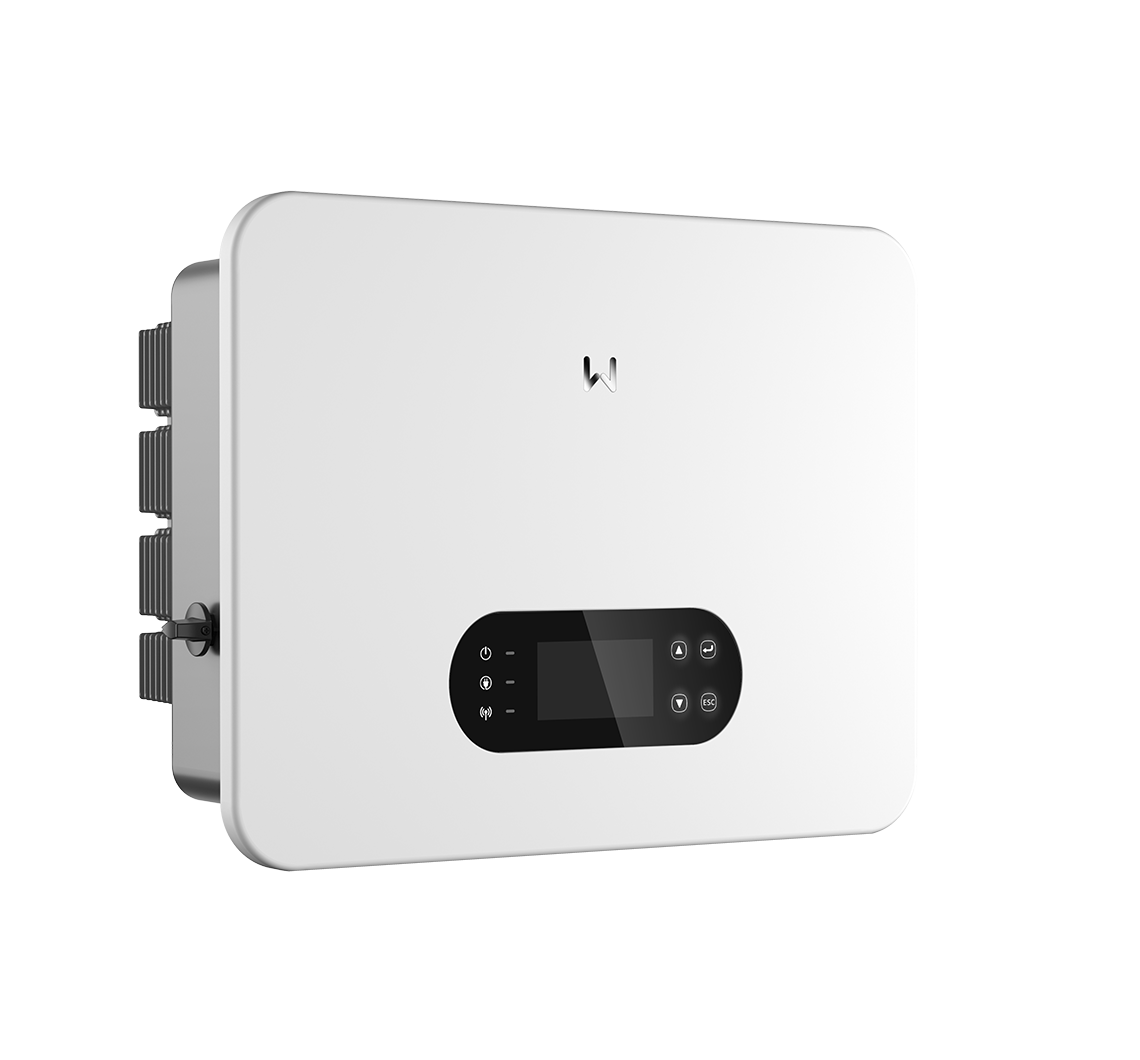

The ES Uniq Series is a dedicated single-phase hybrid inverter engineered for residential applications, delivering cost-effective energy storage solutions with capacities of 8, 10, and 12 kW. This inverter is designed to support up to 200% oversizing capacity. It can manage up to a 200% overload, ensuring dependable performance, especially during peak usage. It facilitates the parallel connection of up to 6 inverters for both on-grid and off-grid operations, making it well-suited for expanding energy requirements. Moreover, the ES Uniq inverter supports micro-grid operation, provinding the ideal choice for residential self-consumption applications and micro-grid scearios, from self-consumption to energy self-sufficiency. ES uniq is compatible with a range of batteries, including the GoodWe batteries.
.png)
Backup with UPS level switching < 4ms
Smart home integration
Parallel connection & Micro-grid operation
AI-driven AFCI and IP66 ingress protection
32A MPPT
UPS
Highest safety standards
The ES Uniq Series offers enhanced safety with optional AI-driven Arc Fault Circuit Interrupter (AFCI) technology, which actively detects and addresses arc faults to reduce potential fire risks. With a robust IP66-rated design, these inverters are highly resistant to harsh environments, ensuring reliable operation across a wide range of environmental conditions and delivering high long-term performance.
AI-driven AFCI
IP66 ingress protection
Flexible Energy Control with Micro-grid Integration
The ES Uniq inverter offers advanced energy management through its innovative 3-in-1 port, allowing effortless connection of generators, diesel or on-grid PV inverter and smart loads—all via a single interface. Designed for flexibility and resilience, it also supports micro-grid functionality through coordinated operation with PV inverters, delivering reliable, autonomous power even in off-grid or weak grid environments.
3-in-1 Port: generator & smart loads & on-grid inverter
Micro-grid operation with PV inverter
OVERVIEW
Model
GW12K-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
240/240
Max. Input Current per MPPT (A)
32 / 32^5
Max. Apparent Power Output to Utility Grid (kVA)
13.2
Back-up Nominal Apparent Power (kVA)
12.0
Model
GW10K-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
200/200
Max. Input Current per MPPT (A)
32 / 32^5
Max. Apparent Power Output to Utility Grid (kVA)
11.0
Back-up Nominal Apparent Power (kVA)
10.0
Model
GW8000-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
160/160
Max. Input Current per MPPT (A)
32 / 16^5
Max. Apparent Power Output to Utility Grid (kVA)
8.8
Back-up Nominal Apparent Power (kVA)
8.0
