ESA Series
Storage Solution I 5 kW I 2 MPPTs I 5.4 - 10.8 kWh I Single Phase
DOWNLOAD PDF >>
All-in-one
Safe battery technology (LFP)
Compact and safe all-in-one solution for solar power storage

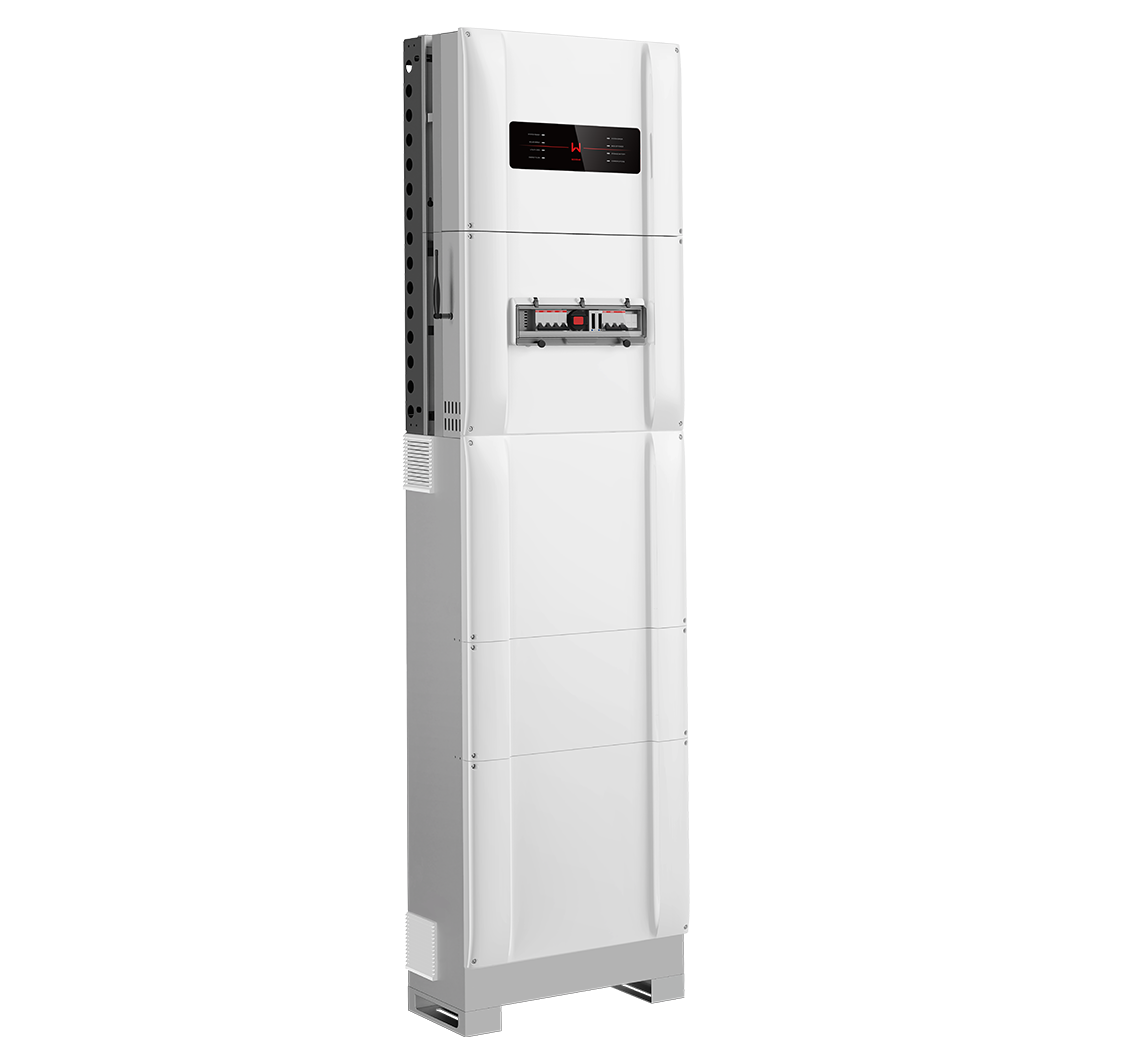

The GoodWe ESA all-in-one PV power storage solution combines a hybrid inverter, battery cells, battery charger and UPS in one compact casing, thereby reducing system complexity for residential applications. The robust unit can withstand tough weather conditions (IP54 rated), thus allowing for outside installation if required, and is neatly packed for a modern and elegant appearance. The pre-wired modular system eases the installation process.
UPS level switching < 10ms
Smart home integration
High back-up output power
IP54 ingress protection
All-in-one
Safe battery technology (LFP)
Maximised Power Back-up
Up to 100A charge and discharge current ensures high charge and discharge power of batteries up to 4.6kW. High backup output power with overload capability.
Integrated dynamic power export limit and load monitoring
Highest Safety Standards
Lithium iron phosphate (LFP) batteries are reliable and safe to use due to high chemical and thermal stability.
Reliable LFP battery cell
Metal aluminium houseing with IP54 rating
OVERVIEW
Model
GW5048-ESA
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
90/100
Max. Input Current per MPPT (A)
14/14
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
4600
