ET 50 Series
Hybrid Inverter I 40/50 kW I 3/4 MPPTs I Three Phase I HV
DOWNLOAD PDF >>
.png)
Robust and powerful
Peak shaving
Optimized performance and flexibility for C&I energy storage

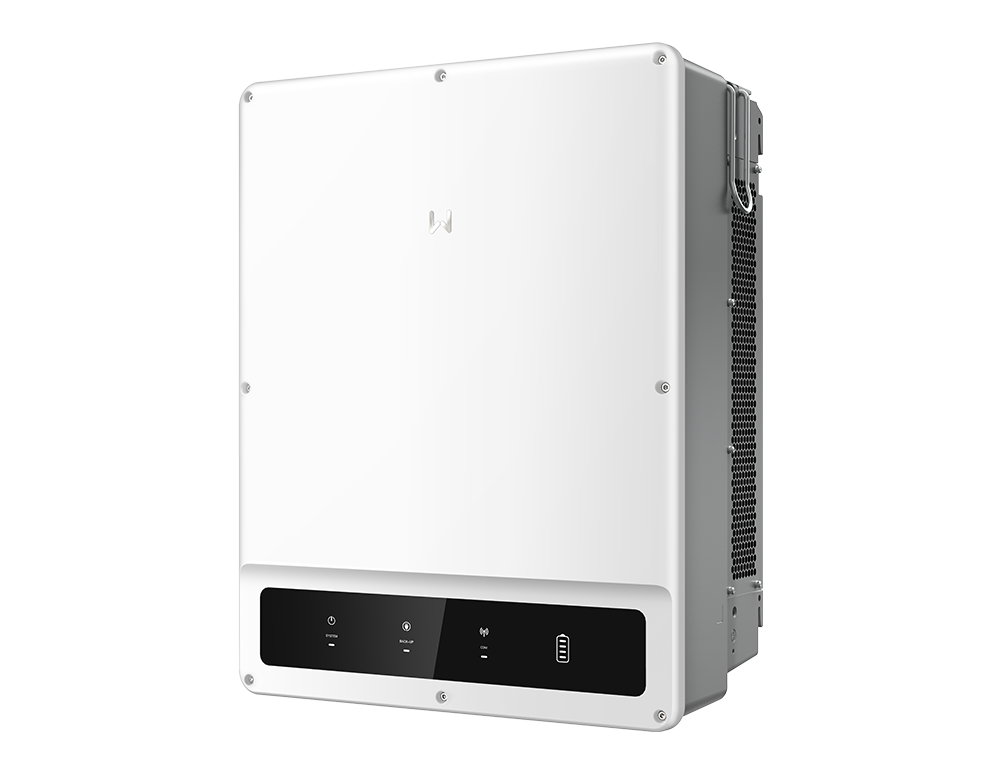

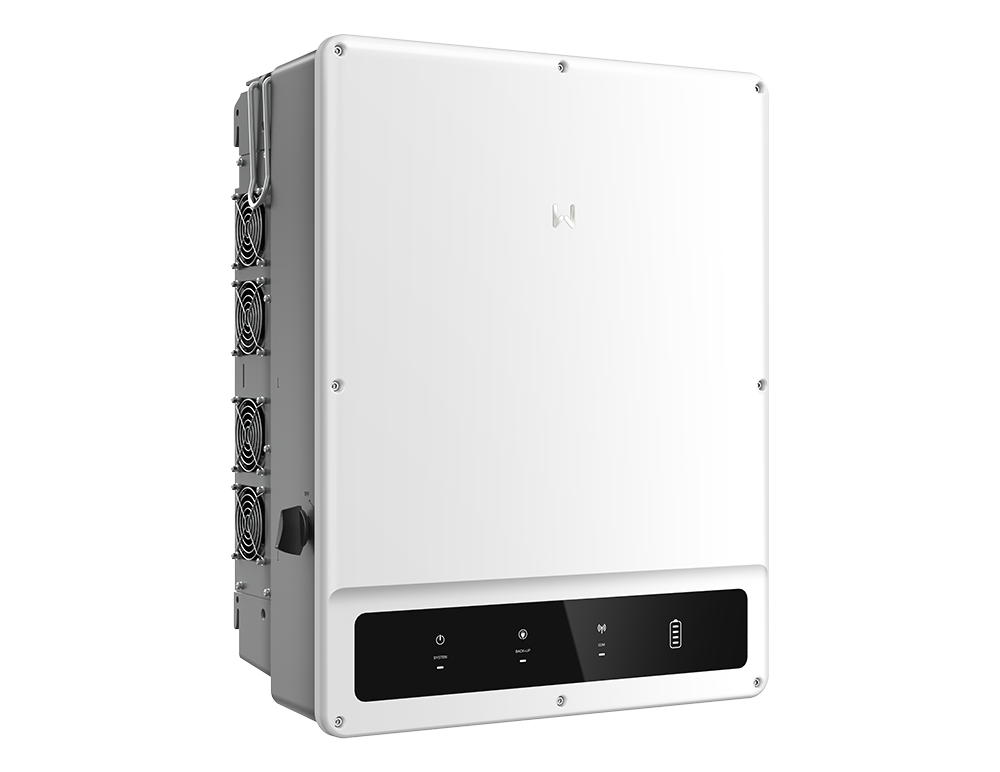

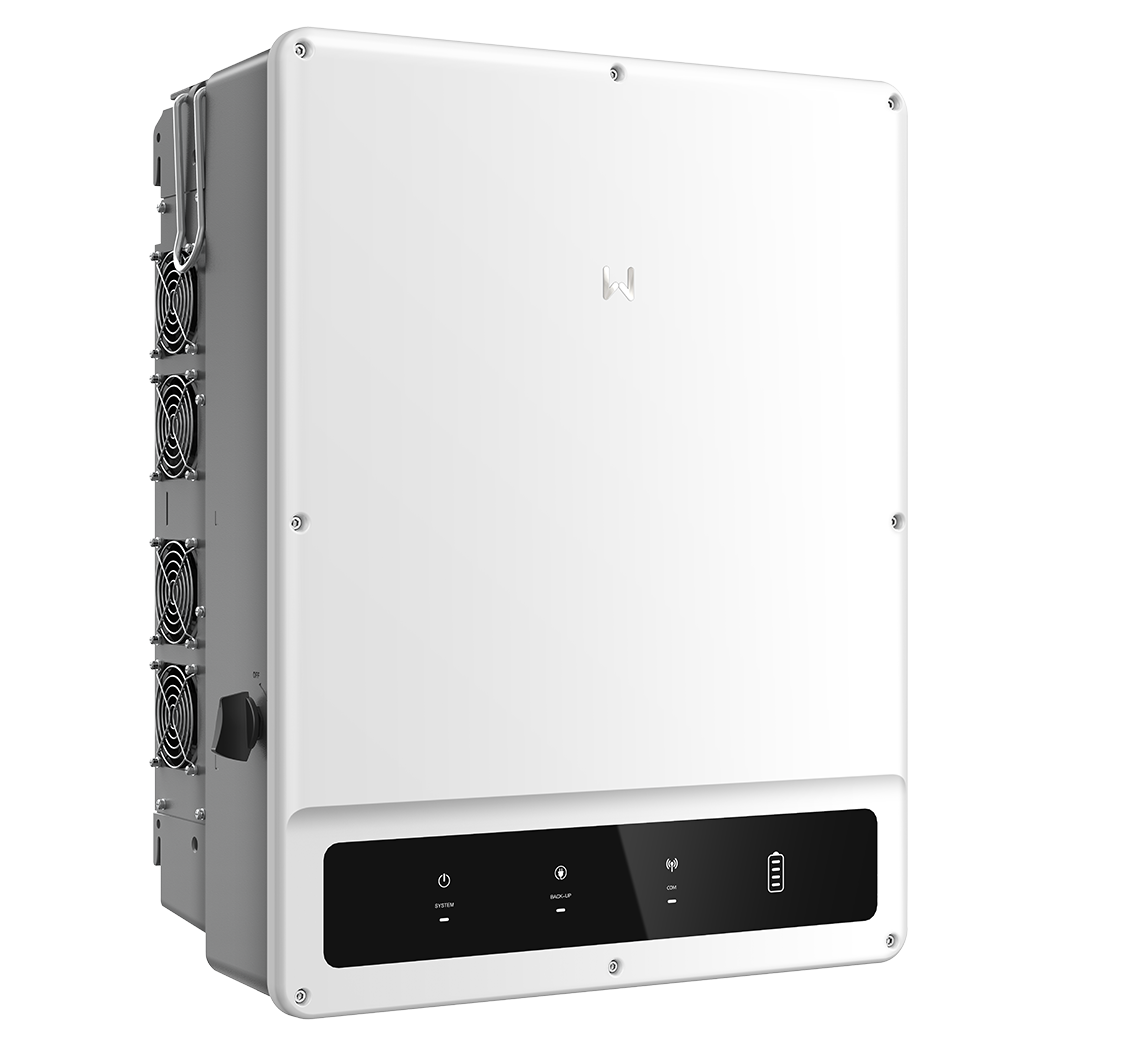

Powerful and compact, the GoodWe ET50 hybrid inverter is ideal for Commercial and Industrial (C&I) energy storage solutions. The inverter is compatible with a range of battery capacities, and leverages intelligent operating modes to optimize system performance across various scenarios such as self-consumption, peak shaving, time-of-use and grid support. Its parallel connection capability facilitates seamless expansion for both on-grid and off-grid setups. When coupled with the Static Transfer Switch (STS) Box, the system supports dependable UPS-level switching to backup mode. Paired with the GoodWe Lynx C battery system, GoodWe provides a complete energy storage solution.
Surge protection Type 2 on DC side
Parallel connection
Powerful back-up with STS box
Peak shaving and grid support
IP66 ingress protection
Robust and powerful
Peak shaving
Flexibile and efficient operations
ET50's parallel connection capability facilitates seamless expansion for both on-grid and off-grid setups. Achieve higher power and capacity solutions by paralleling multiple inverters and share the same backup load across multiple STS units in the system.
Parallel connection
Powerful back-up with STS box
Diesel generator integration and control
Highest safety standards and reliability
Type II surge protection on DC side is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
Built-in Type II SPD on DC side
IP66 ingress protection
AFCI optional
Optimised energy autonomy
110% unbalanced output to compensate load differences in self-consumption and backup modes. Diferent energy management strategies including peak shaving, arbitrage and TOU. Maximize energy production with 150% DC oversizing capability.
110%
Unbalanced output
Peak shaving and self-consumption
Integrated dynamic power export limit and load monitoring
OVERVIEW
Model
GW50K-ET-10
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
100 / 100
Max. Input Current per MPPT (A)
42 / 32 / 42 / 32
Max. Apparent Power Output to Utility Grid (VA)
50000
Back-up Nominal Apparent Power (VA)
50000
Model
GW40K-ET-10
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
100 / 100
Max. Input Current per MPPT (A)
42 / 32 / 42
Max. Apparent Power Output to Utility Grid (VA)
40000
Back-up Nominal Apparent Power (VA)
40000
