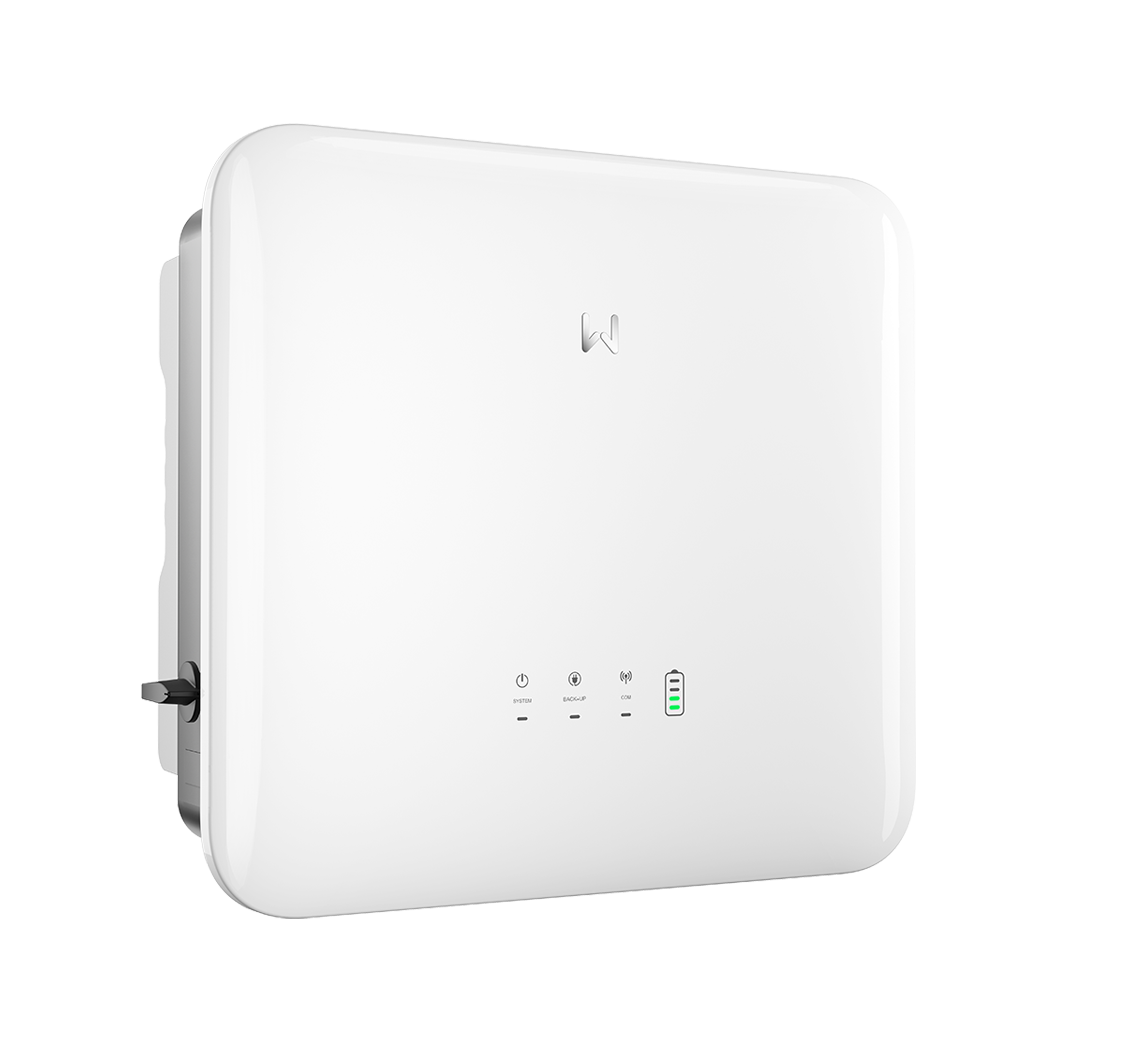

ET G2 Series
Hybrid Inverter I 6 – 15 kW I 3 MPPTs I Three Phase I HV
DOWNLOAD PDF >>
.png)
Smart operation modes
Elegant & Compact
Cutting-edge hybrid inverter with smart operation modes and powerful back-up capabilities
The ET G2 hybrid inverter is designed to maximise energy output, enhance self-consumption, and facilitate extensive back-up power for homeowners. With power rating up to 15 kW, intelligent load controls and a wide battery voltage range, the inverter caters to individual needs. To secure a high level of energy autonomy, combine the hybrid inverter with GoodWe HV battery, and connect the system to the GoodWe EV chargers and/or any smart-grid ready household appliances. By combining a variety of smart operation modes, the system can be optimized to further drive down energy cost.
Backup with UPS level switching < 10ms
Integrated load control
Peak shaving and unbalanced support capabilities
Optional AFCI 3.0
Smart operation modes
Elegant & Compact
Smart and efficient operations
Integrated dynamic power export limit and load monitoring. Supports multiple communication protocols for smart integration and with smart-grid ready household appliances like heat pumps, EV charger/s or other large loads. Unbalanced output voltage function prevents disconnections due to unbalanced grid.
Peak-shaving
Load control
Unbalanced Output Voltage function
Optimized for lower energy cost
Compatible with GoodWe HV batteries and multiple other brands. Supports multiple communication protocols for smart home integration. Integrated smart meter and advanced operation modes.
Integrated dynamic power export limit and load monitoring
Integrated smart meter
Peak-shaving and Unbalanced Output Voltage functions
Uninterrupted power supply
The UPS-level switching ability ensures the power supply security and reduce the risk of outage for essential loads. 100% unbalanced output to compensate load differences in self-consumption and backup modes.
Backup with UPS level switching < 10ms
Powerful backup
100% unbalanced output
OVERVIEW
Model
GW10K-ET-20
Battery Voltage Range (V)
150~720
Max. Continuous Charging / Discharging Current(A)
40/40
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
10000
Back-up Nominal Apparent Power (VA)
10000
Model
GW8000-ET-20
Battery Voltage Range (V)
150~720
Max. Continuous Charging / Discharging Current(A)
30/30
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
8000
Back-up Nominal Apparent Power (VA)
8000
Model
GW6000-ET-20
Battery Voltage Range (V)
150~720
Max. Continuous Charging / Discharging Current(A)
30/30
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW12K-ET-20
Battery Voltage Range (V)
150~720
Max. Continuous Charging / Discharging Current(A)
40/40
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
12000
Back-up Nominal Apparent Power (VA)
12000
Model
GW15K-ET-20
Battery Voltage Range (V)
150~720
Max. Continuous Charging / Discharging Current(A)
40/40
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
15000
Back-up Nominal Apparent Power (VA)
15000
-576.jpg)
