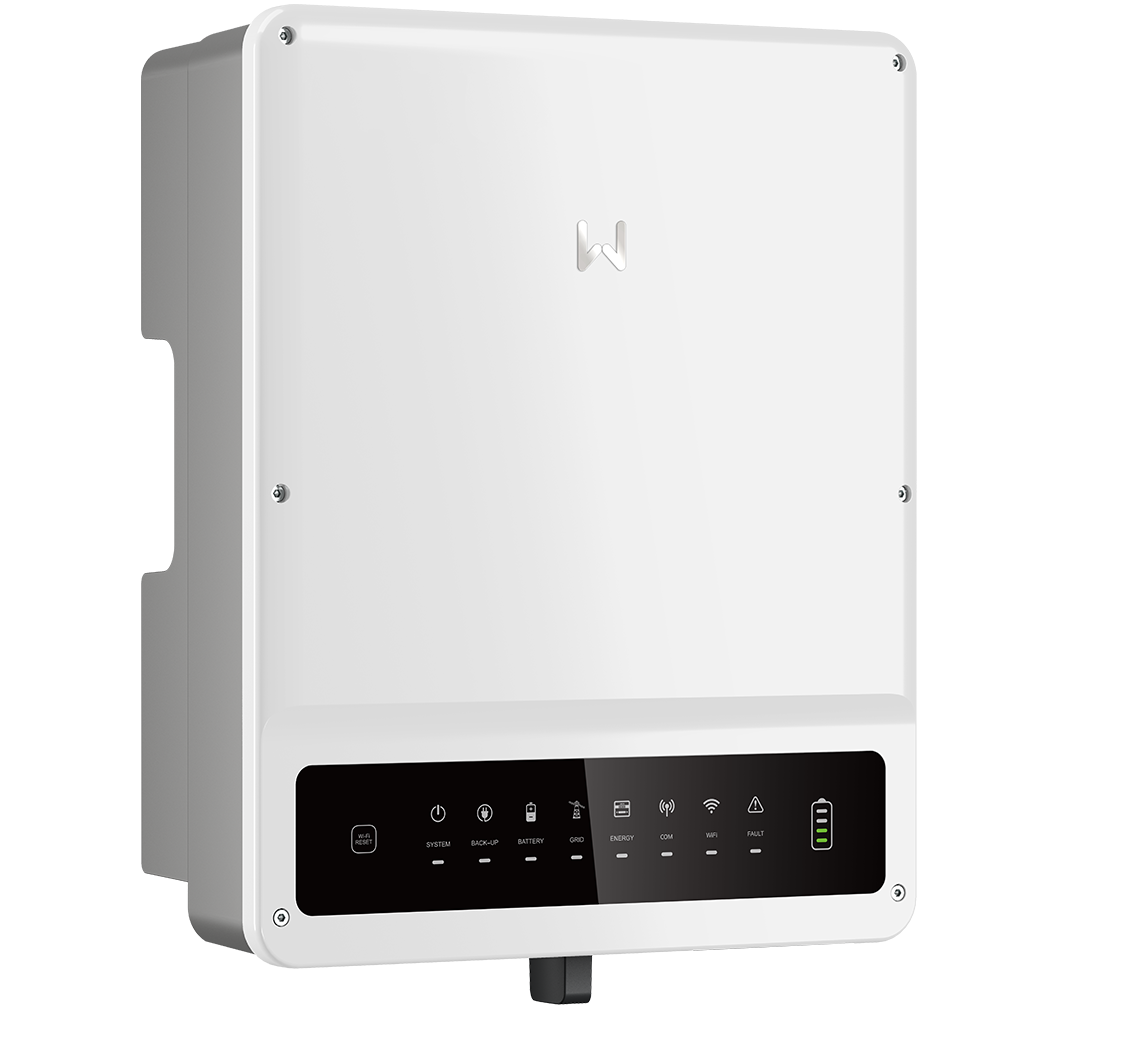

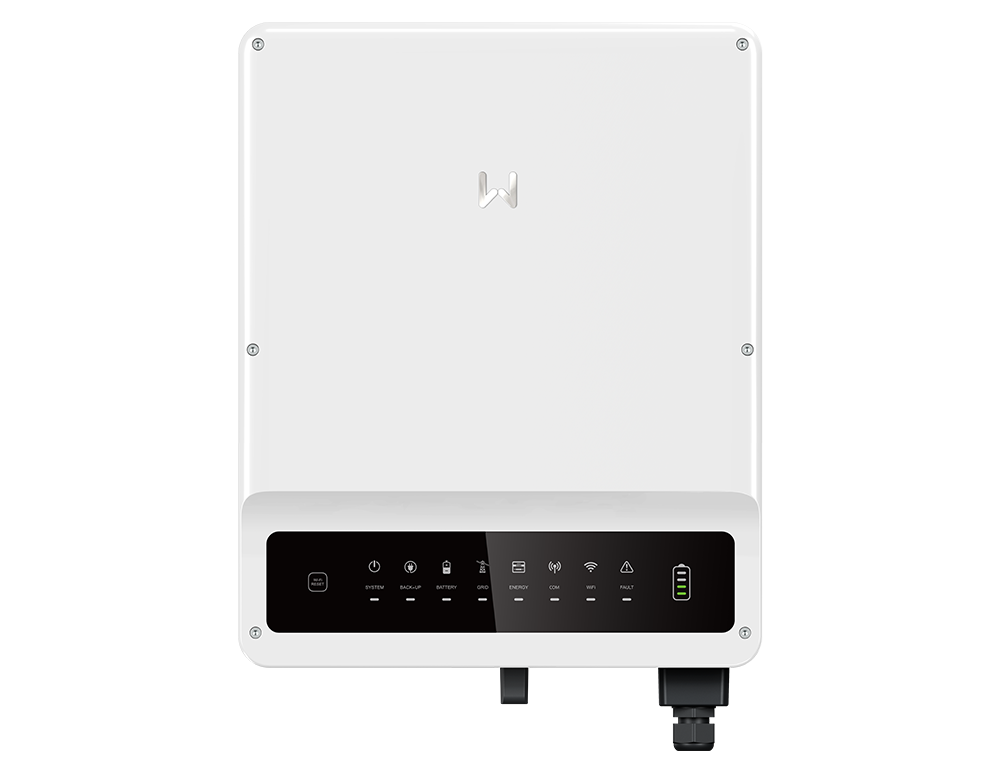

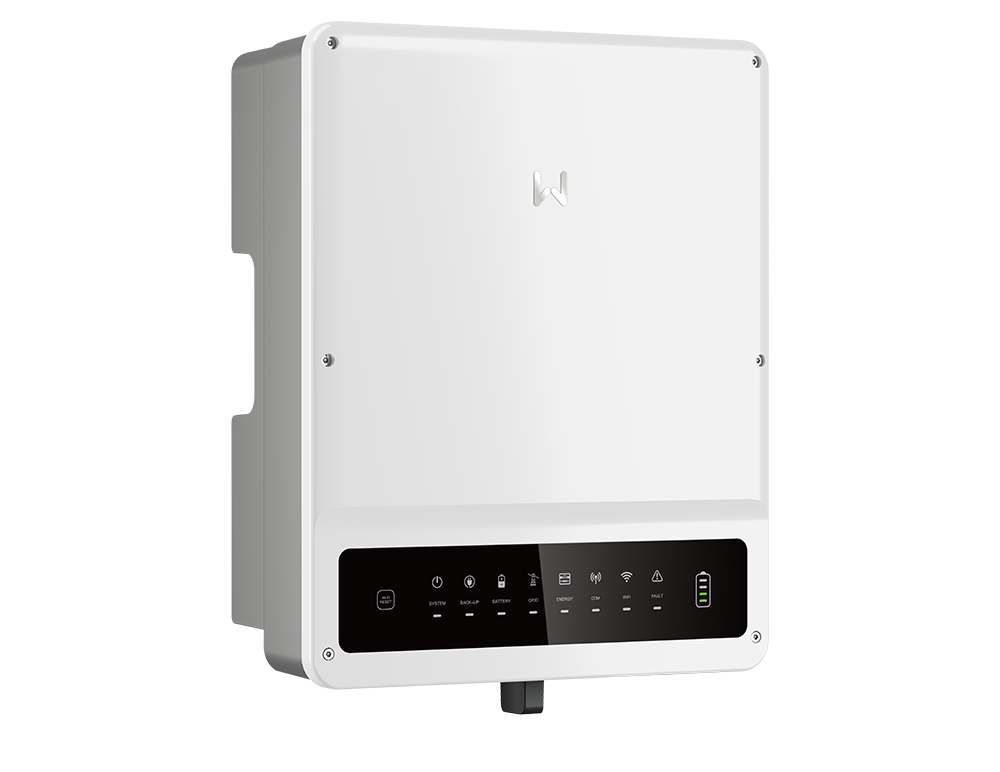

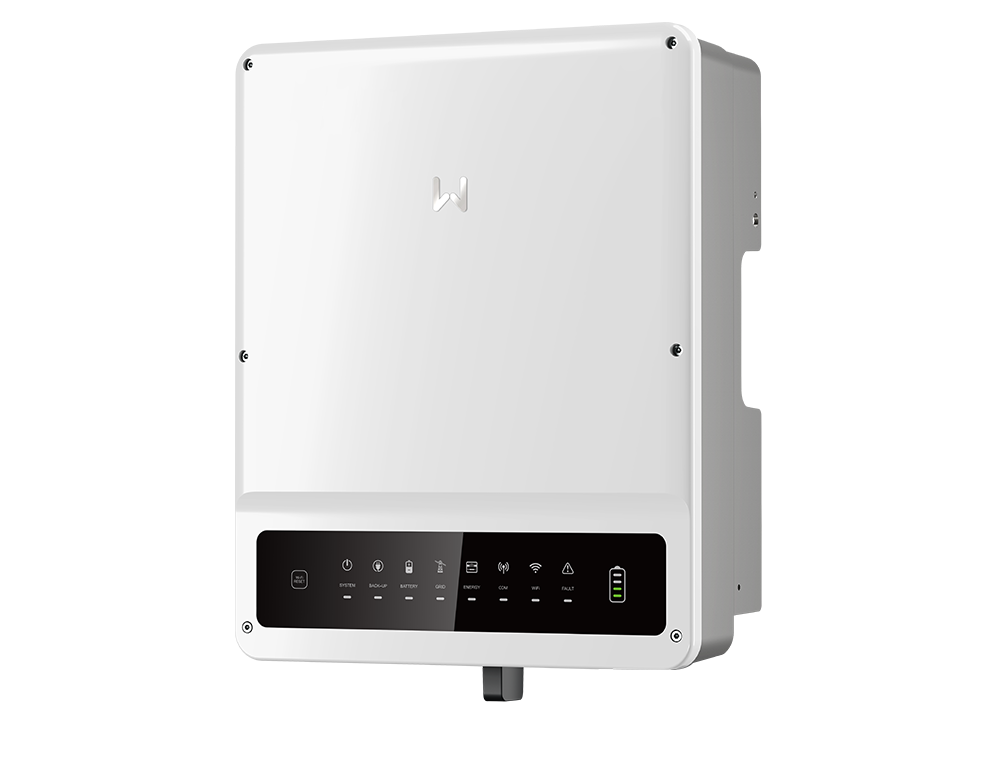

ET PLUS+ (16A) Series
Hybrid Inverter I 5 – 10 kW I 2 MPPTs I Three Phase I HV
DOWNLOAD PDF >>
.png)
Fanless and silent
Elegant & Compact
Smart optimisation of energy autonomy across residential ecosystems
Operating at the heart of the integrated PV power and storage system, our ET PLUS+ hybrid inverters are designed to maximise energy output, enhance self-consumption, realise peak-shaving and facilitate backup power. With intelligent load controls and wide battery voltage range, the set-up can be flexibly configurated to meet individual needs across the residential ecosystem. Combine with GoodWe battery system Lynx Home F for a safe and reliable energy storage solution.
Surge protection on both DC and AC side
Backup with UPS level switching < 10ms
IP66 ingress protection
Integrated dry contact for external loads
Fanless and silent
Elegant & Compact
Highest Safety Standards
Thanks to the in-built DC type II SPD, ET PLUS+ series can protect DC side from lightning strikes and save the cost of an external device.
Built-in Type II SPD on DC side
IP66 ingress protection
Optimised energy autonomy
Wide battery voltage range (180-600V) supports various battery capacities and power. Compatible with GoodWe batteries and multiple other brands. The UPS-level switching ability ensures the power supply security and reduce the risk of outage for critical loads.
Wide battery voltage range
Integrated dynamic power export limit and load monitoring
Smart and efficient operations
100% unbalanced output to compensate load differences in self-consumption and backup modes. Supports multiple communication protocols for smart home integration.
100
100% unbalanced output
10
Backup with UPS level switching < 10ms
OVERVIEW
Model
GW5KN-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW6.5KN-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
7150
Back-up Nominal Apparent Power (VA)
6500
Model
GW8KN-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
8800
Back-up Nominal Apparent Power (VA)
8000
Model
GW10KN-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
11000
Back-up Nominal Apparent Power (VA)
10000
