GT Series
String Inverter | 100 - 125 kW | 8/10 MPPTs | Three Phase
DOWNLOAD PDF >>
.png)
Smart & low-noise fans
Robust design
Increased ROI for C&I solar power projects

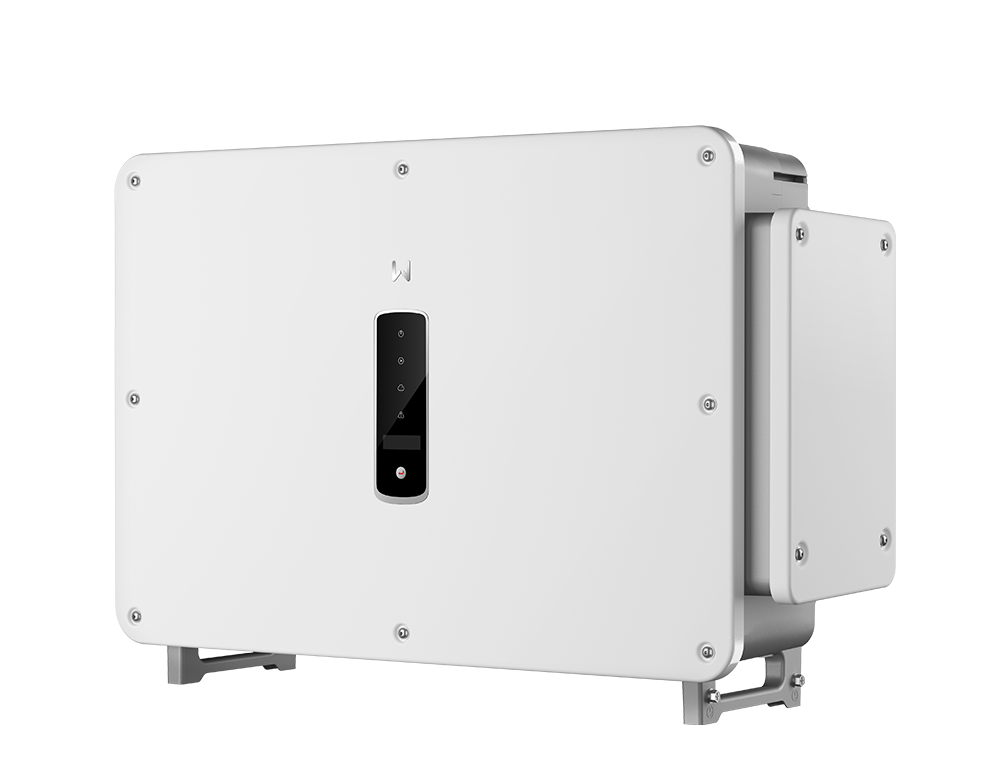

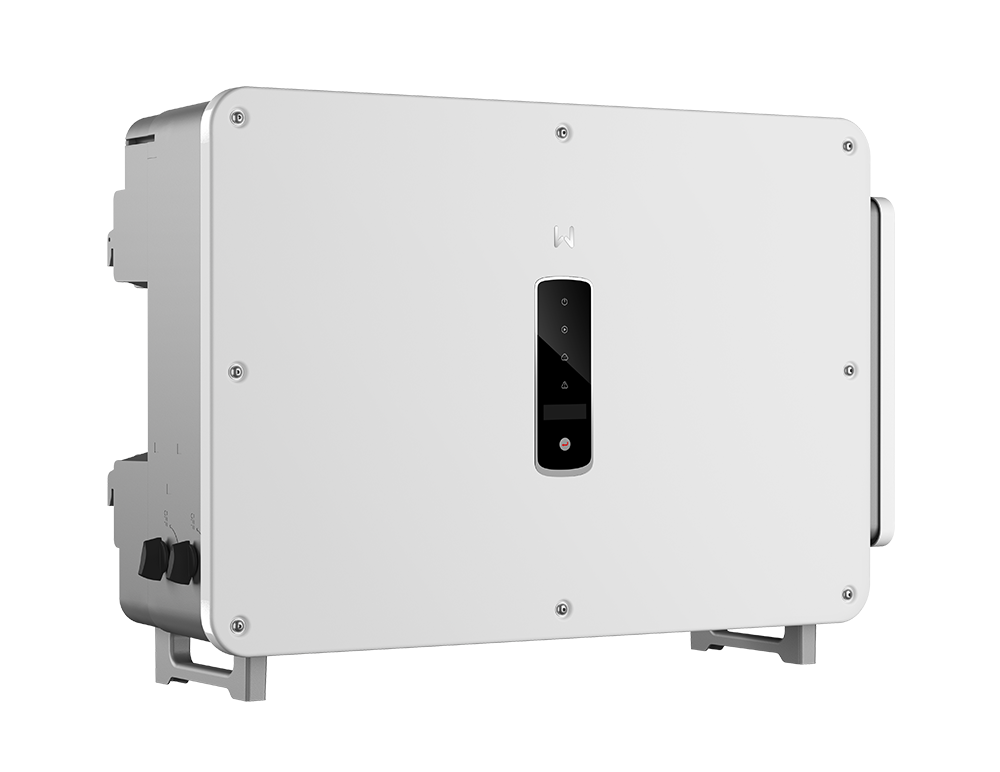

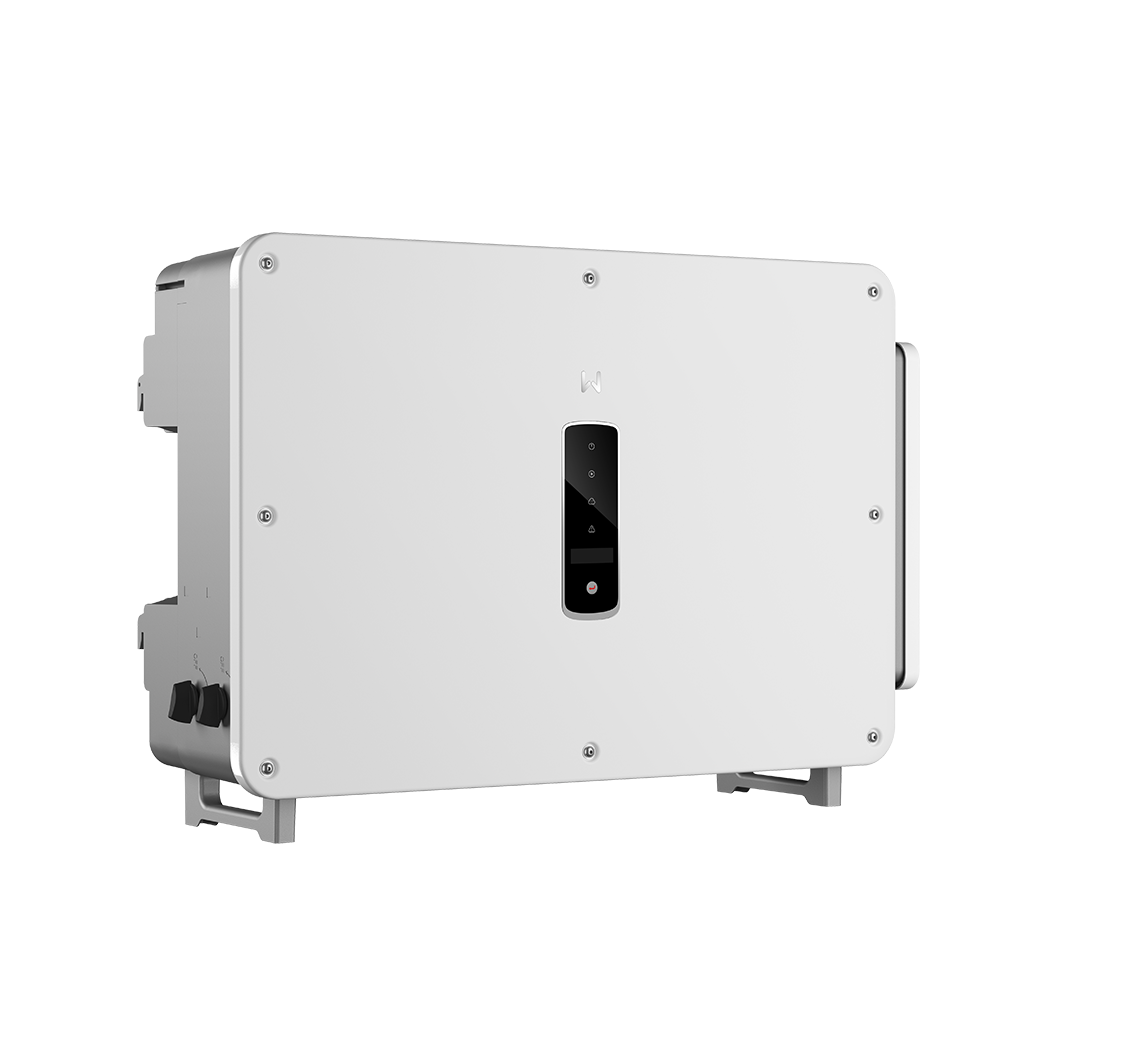

Characterized by its high power density, the GT Series string inverter provides high energy yields for commercial and industrial PV applications. Multiple MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. Type II surge protection provides safety and reliability for the PV system from lightning.
High power density
Up to 21A per string
Full power up to 45°C
Smart & low-noise fans
Robust design
Lower CAPEX and OPEX
High power density with up to 137kW maximum power for low voltage grid applications (400V).
High power density
150% DC input oversizing
Maximised energy output
10% additional power up to 45 °C ambient temperature provides maximal generation. Up to 12 MPPTs and high input current of 21A per DC string increasing the overall yield with high power PV modules.
Up to 21A per string
Full power up to 45°C
Superb Safety & Reliability
Equipped with IP66 and optional C5 corrosion protection, GT Series endures harsh environments for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
IP66 and optional C5 corrosion protection
Type II Surge Protection & optional AFCI
OVERVIEW
Model
GW125K-GT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
42
Number of MPP trackers/Number of Strings per MPPT
10/2
Max. Efficiency
99.0%
Nominal Output Voltage (V)
220/380, 230/400, 3L/N/PE or 3L/PE
Model
GW110K-GT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
42
Number of MPP trackers/Number of Strings per MPPT
10/2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
220/380, 230/400, 3L/N/PE or 3L/PE
Model
GW100K-GT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
42
Number of MPP trackers/Number of Strings per MPPT
8/2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
220/380, 230/400, 3L/N/PE or 3L/PE
