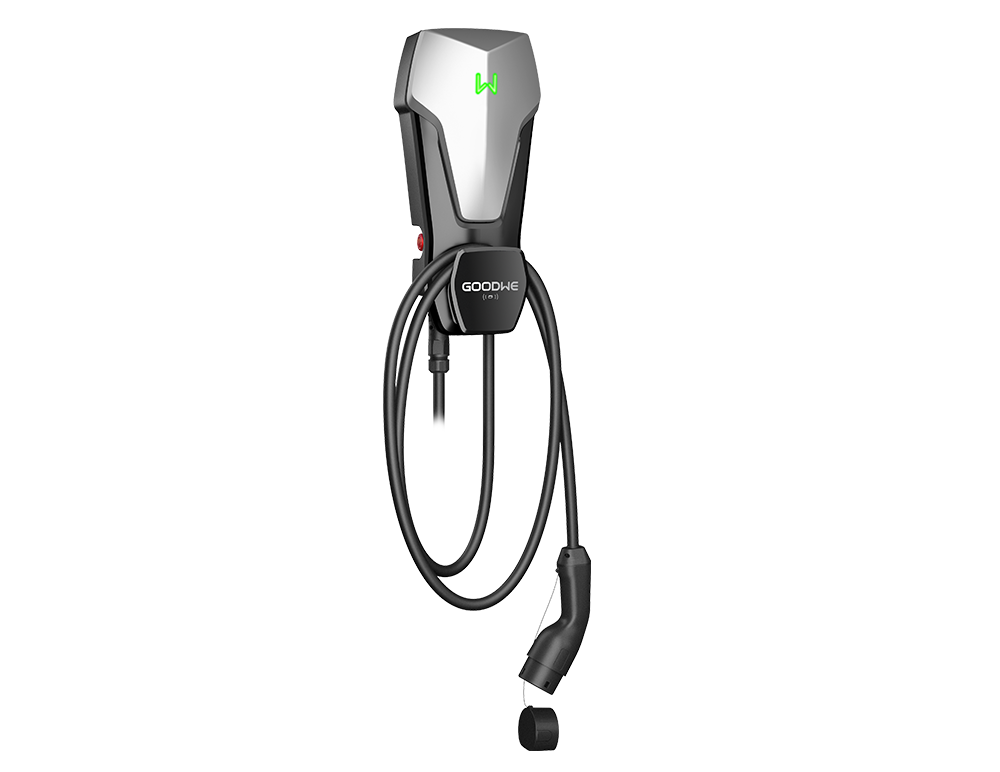

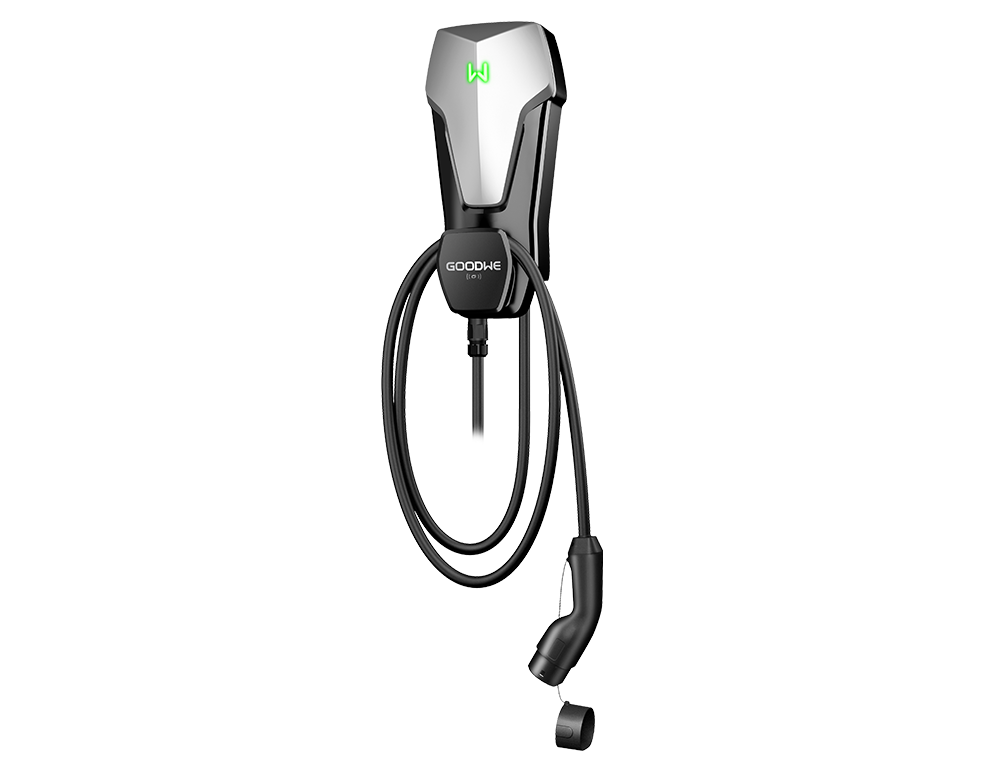

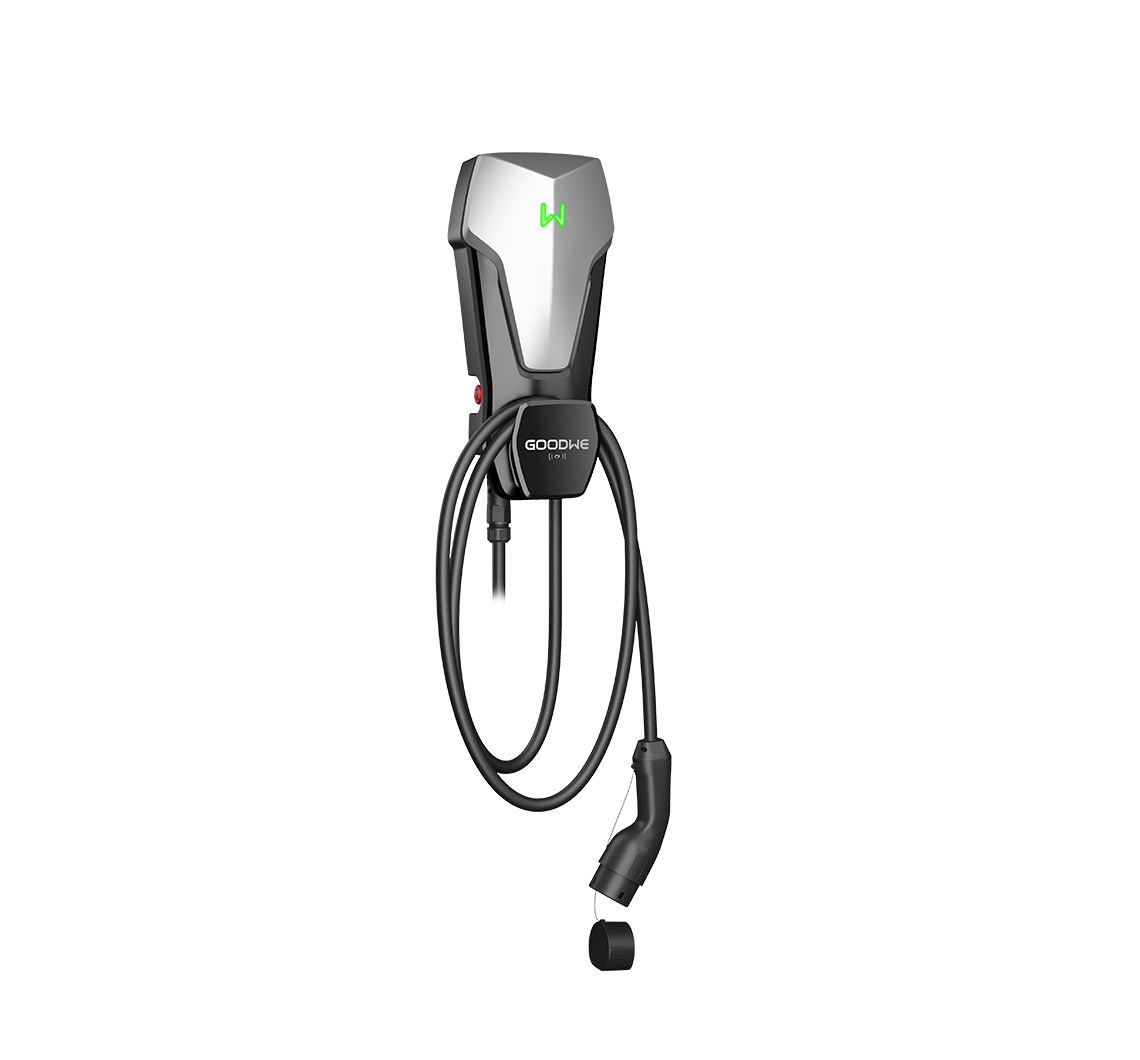

HCA G2 Series
AC EV Charger I 22 kW I 11 kW I 7 kW I Single / Three Phase
DOWNLOAD PDF >>
.png)
Smart charging
Safe and efficient
Smart and flexible EV charging for green and cost-efficient mobility
GoodWe's HCA G2 EV charger allows drivers to maximise the use of solar energy by charging their Electric Vehicles (EV) with smart phase switching function. By seamlessly communicating with the PV system's inverter and battery, the EV charger offers the flexibility to completely charge using solar energy or to also quickly top-up from the grid if needed with user configurable multiple charging modes, all managed within GoodWe's SEMS+ app. Moreover, by supporting multiple authentication methods, the HCA G2 EV charger offers drivers, employers and lease companies transparency on charging energy costs for account splitting and reimbursement.
Smart and flexible charging
Transparent cost management
Compatible with all EV brands
Complete PV+EV solution available
Smart charging
Safe and efficient
Flexible and efficient operations
The EV Charger provides various communication options and integrates seamlessly with GoodWe's free monitoring platform SEMS+ App, allowing EV-owners to intelligently monitor and schedule their charging sessions.
Intelligent monitoring & scheduling
Protected RFID access
Transparent charging reports
Intelligent functionality
With the dynamic load balacing, the GoodWe AC EV Charger G2 is actively monitoring the household energy consumption and is safely adjusting the charging speed accordingly to help minimize the charging time without overloading the electrical installation. The 3-phase charger is capable to switch to a 1-phase chargering mode to allow for maximum PV energy utilization for your EV.
Dynamic load balancing
Phase switching
Maximized self-consumption
Combine with GoodWe inverters and batteries for an end-to-end solution that meets the individual needs of PV+EV owners and facilititates a high degree of energy autonomy. For EV-owners considering the installation of a PV system at a later stage, the GoodWe EV charger represents a future-proof and flexible option. A one-stop-shop solution, GoodWe inverters, batteries EV charger are fully compatible (wired or through the cloud) and ensure safe and efficient operation.
Complete PV+EV solution available
Flexible and future-proof options
Modbus communication protocol via RS485
OVERVIEW
Model
GW22K-HCA-20
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
22000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW11K-HCA-20
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
11000
Nominal Output Current (A)
16
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW7K-HCA-20
Nominal Input Voltage (V)
230, L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
7000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
