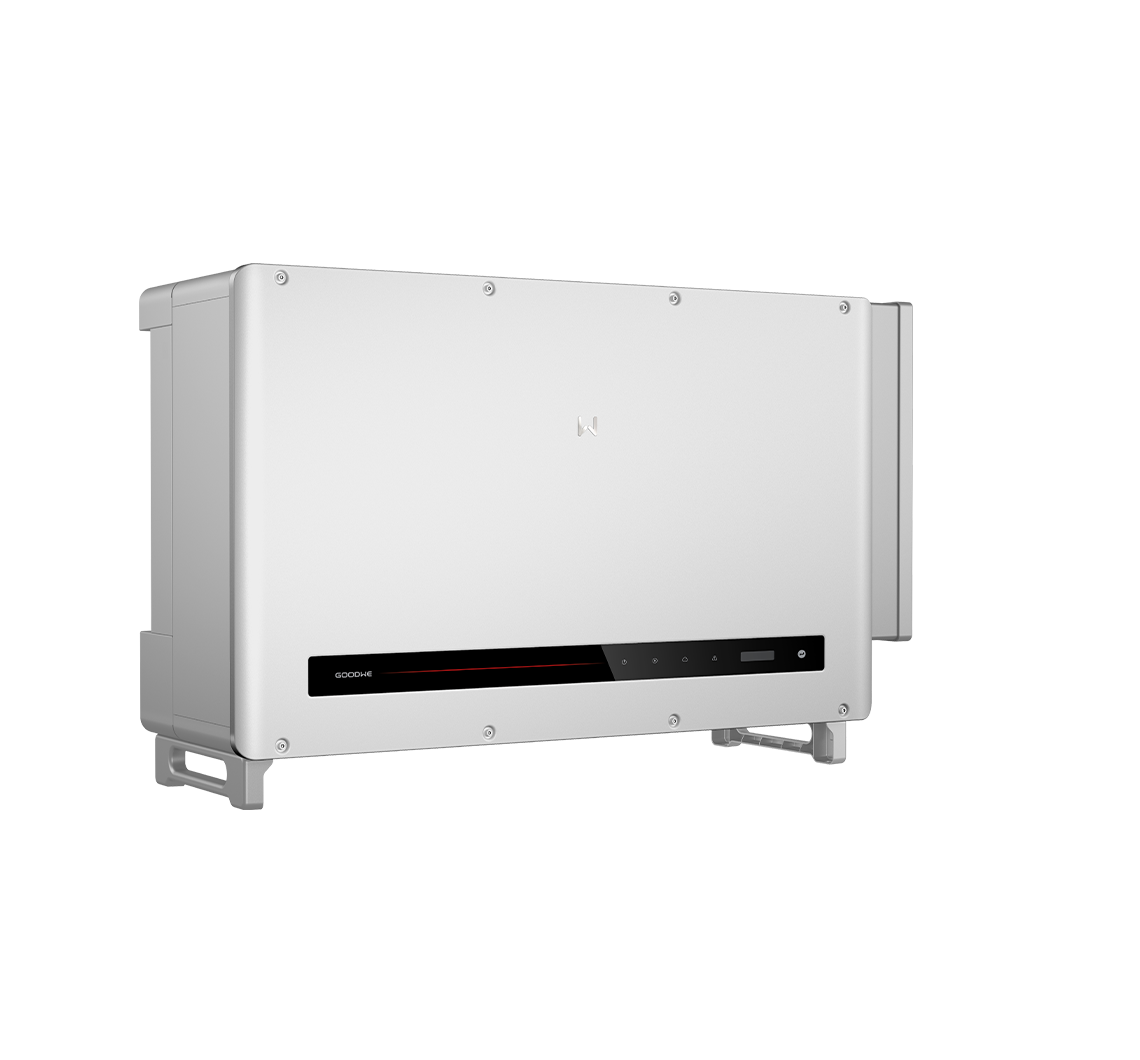

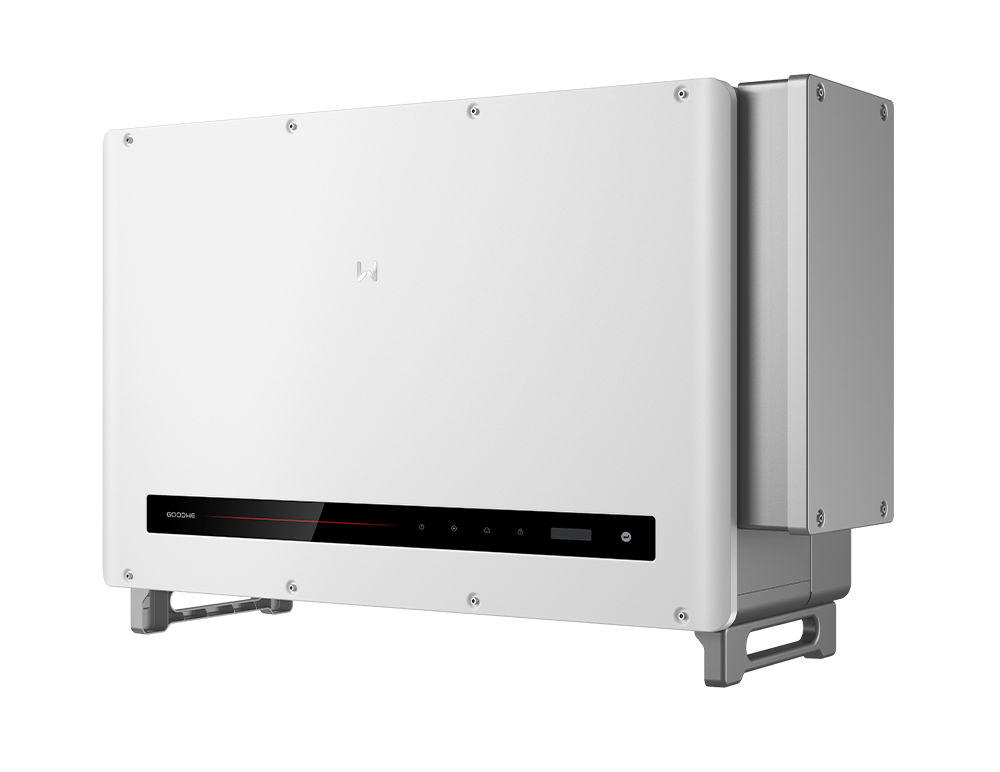

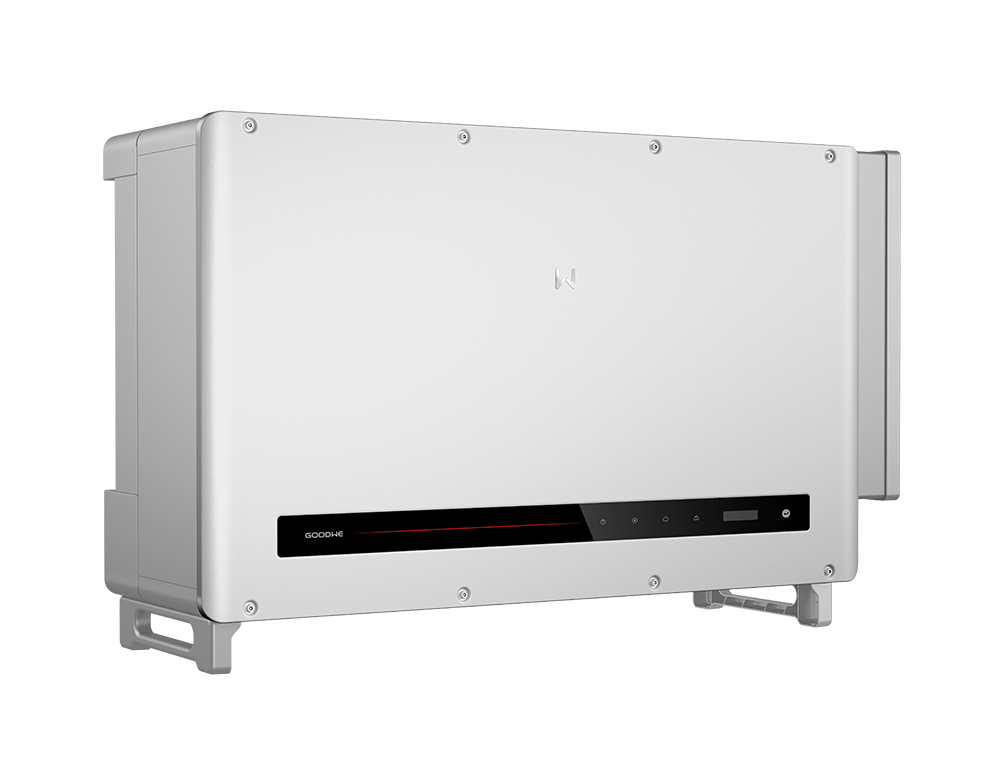

HT 1500V Series
String Inverter I 225 – 250 kW I up to 12 MPPTs I Three phase
DOWNLOAD PDF >>
High quality components
IP66 and C5 coating
Maximising ROI for utility-scale projects in all environments
Designed to support green investments, facilitate bankability and ensure longevity, the HT 1500V is the preferred choice for utility-scale, ground mounted PV plants. The inverter optimises energy yield and ensures continuously high performance even under the toughest environmental conditions, delivering best value for money. Combine with GoodWe Solar Communication Box SCB3000 to realise remote monitoring and control via power line communication (PLC).
Up to 20A input current per DC string
Integrated PID-recovery and PLC communication
Remote setting and update possible
Advanced string monitoring
High quality components
IP66 and C5 coating
Highest Safety Standards
Featuring smart string protection switch, the inverter can detect a short circuit or reverse connection, automatically turn off the switch to stop the corresponding MPPTs, and report the fault at the same time, which ensures both safety and efficiency.
Smart string protection switch
IP66 and C5 protection
Lower CAPEX and OPEX
String level monitoring allows for complete observation of the energy system. Users can monitor each panel for smart and proactive maintenance. The PID recovery function and PLC communication are integrated into the inverter without additional expenses. The series also supports remote settings and updates, which reduces the site visit costs during the maintenance cycle.
String level monitoring
PID-recovery integrated
Maximised energy output
HT Series is ideal for high-power 210mm modules by supporting up to 20 A max. input current per string and up to 60 A DC max. input current per MPPT, which makes full use of power generated and lowers LCOE for clients.
20
Up to 20A input current per DC string
12
Up to 12 MPPTs
OVERVIEW
Model
GW250KN-HT
Max. Input Voltage (V)
1500
Max. Input Current per MPPT (A)
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency
99.0%
Nominal Output Voltage (V)
800,3L/PE
Model
GW225KN-HT
Max. Input Voltage (V)
1500
Max. Input Current per MPPT (A)
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency
99.0%
Nominal Output Voltage (V)
800,3L/PE
Model
GW250K-HT
Max. Input Voltage (V)
1500
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency
99.0%
Nominal Output Voltage (V)
800, 3L/PE
Model
GW225K-HT
Max. Input Voltage (V)
1500
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency
99.0%
Nominal Output Voltage (V)
800, 3L/PE
