Up to 6 Batteries in parallel
Plug & Play communication

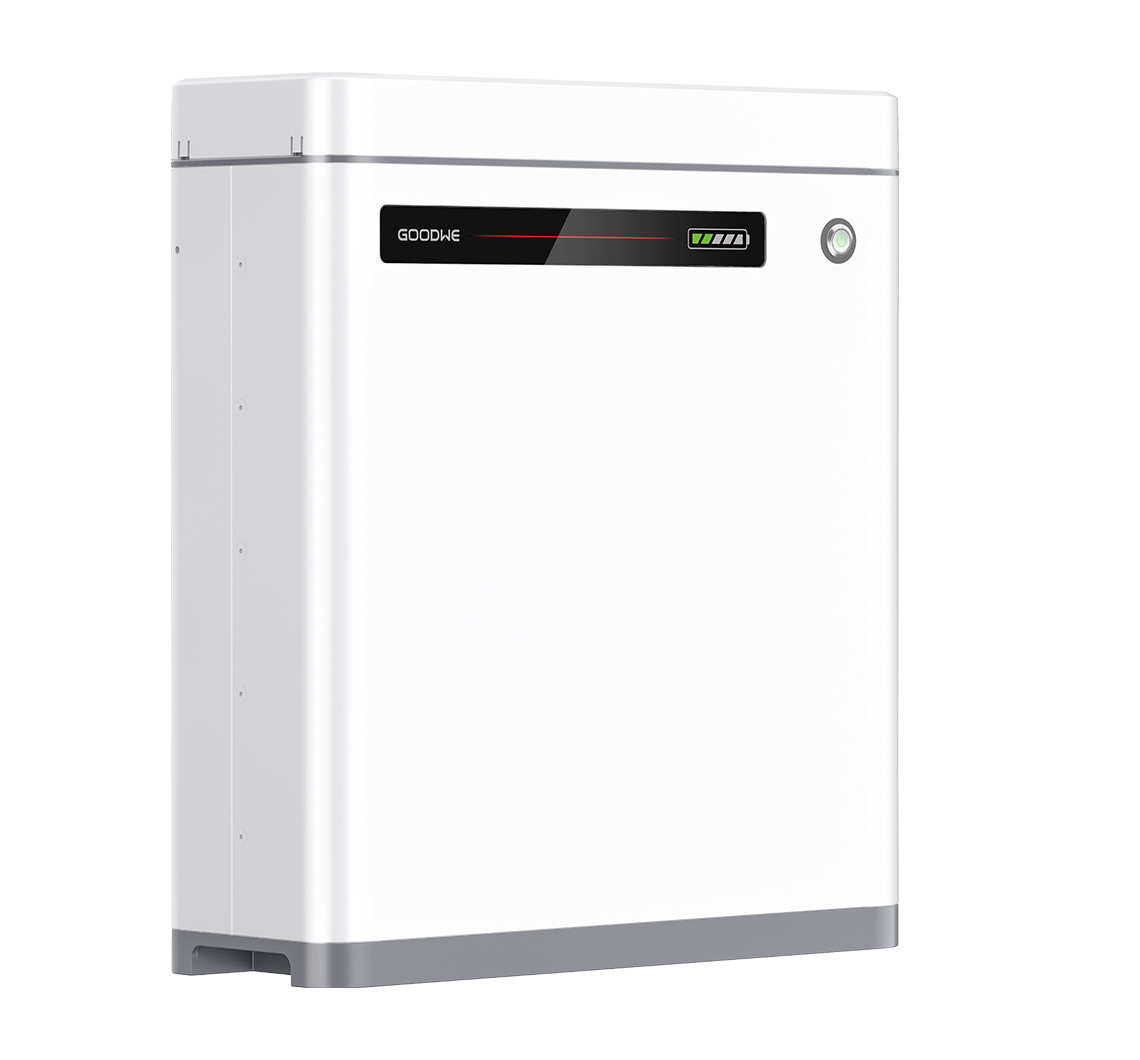

Safe and flexible LV battery system for PV power self-consumption and back-up
Featuring lithium iron phosphate (LFP) battery technology for enhanced safety and reliable performance, GoodWe’s low-voltage (LV) Lynx Home U Series has been specially designed for residential applications. The system is optimised for self-consumption and back-up of solar power, while the convenient plug-and-play design allows for easy installation. Compatible with GoodWe ES/ES G2/EM/SBP/SBP G2 inverters, the modular battery system is scalable in the range from 5.4 to 32.4 kWh.
Remote diagnosis and update via inverter
Auto reboot after undervoltage
Reliable LFP battery cell
IP65 protection for outdoor installation safety
Up to 6 Batteries in parallel
Plug & Play communication
Maximised Power Back-up
Wide capacity range, scalable from 5,4 - 32,4 kWh. Compatible with GoodWe's single hybrid and retrofit ES/ES G2/EM/SBP/SBP G2 inverters.
Flexible capacity
High battery cycle stability
Highest Safety Standards
Lithium iron phosphate (LFP) batteries are reliable and safe to use due to high chemical and thermal stability.
Reliable LFP battery cell
IP65 for both indoor and outdoor installation
OVERVIEW
Model
LX U5.4-20
Usable Energy (kWh)
5.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
50 / 50
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
2*LX U5.4-20
Usable Energy (kWh)
10.8
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
3*LX U5.4-20
Usable Energy (kWh)
16.2
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
4*LX U5.4-20
Usable Energy (kWh)
21.6
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
5*LX U5.4-20
Usable Energy (kWh)
27.0
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
6*LX U5.4-20
Usable Energy (kWh)
32.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
