IP67
Plug & Play
Optimized performance on PV-module level

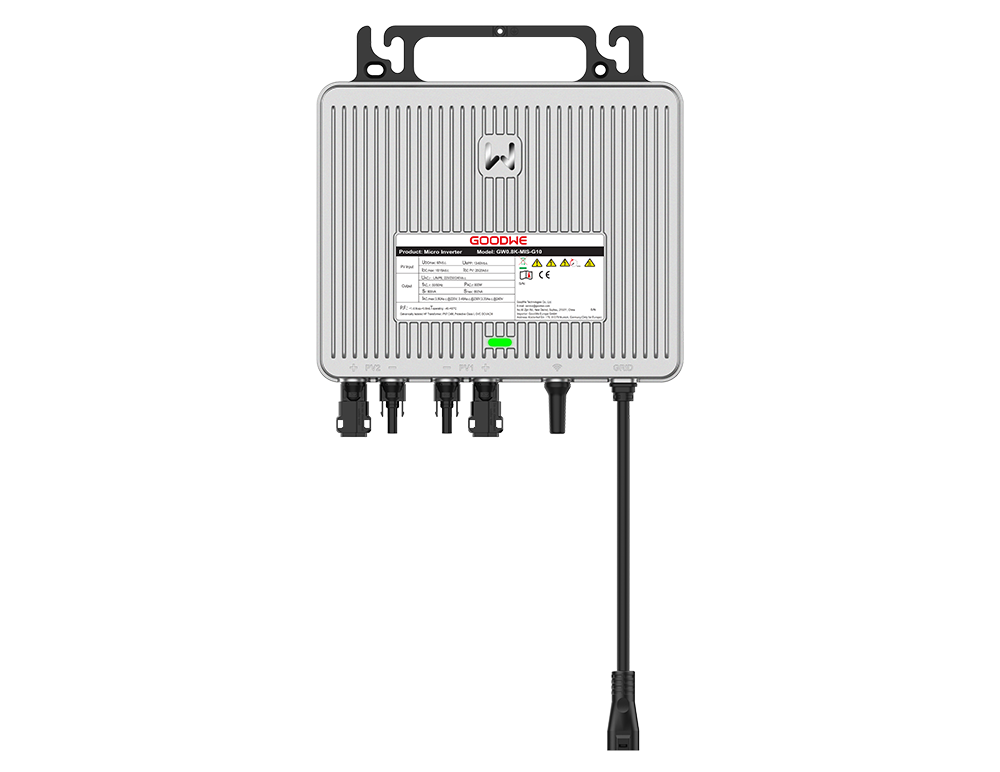

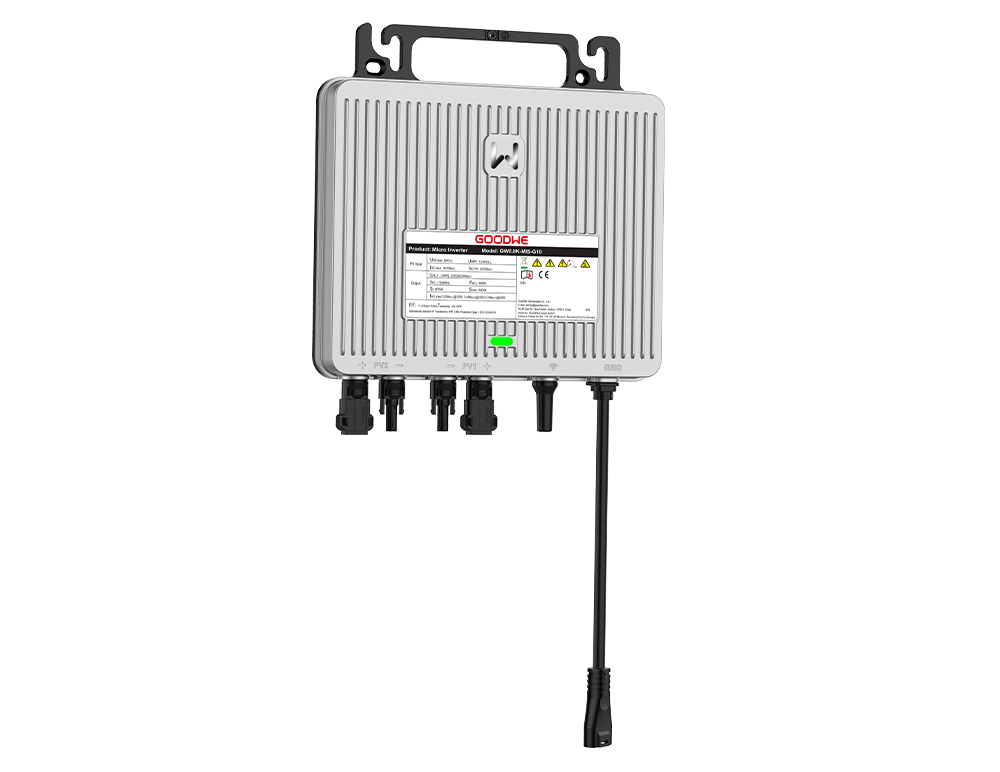

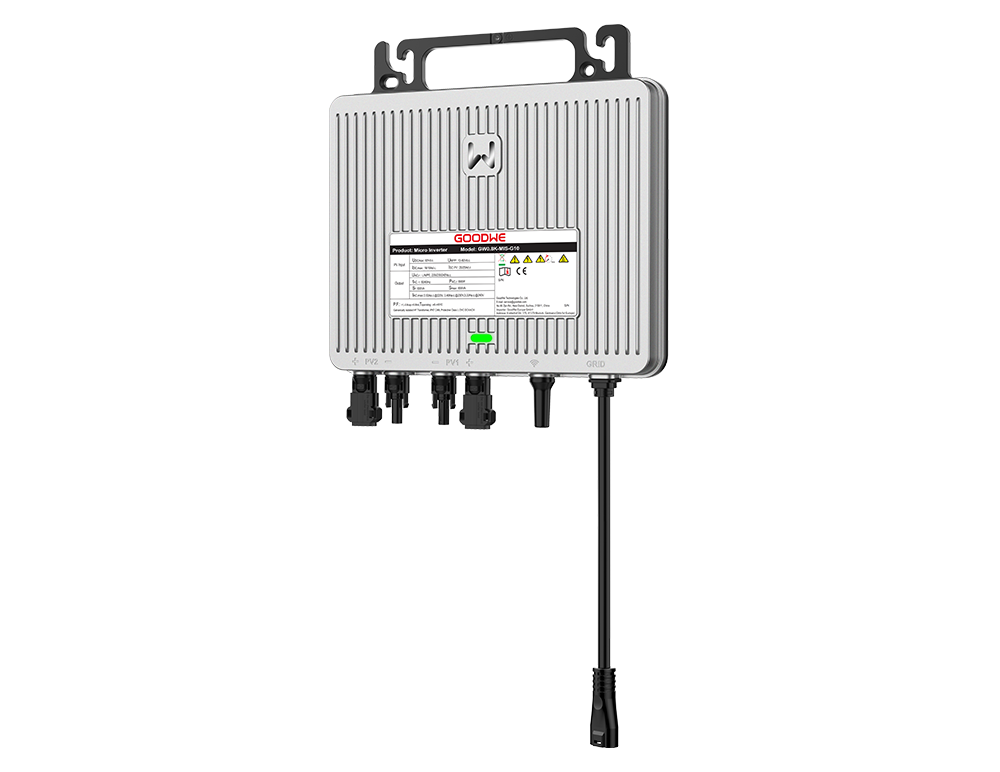

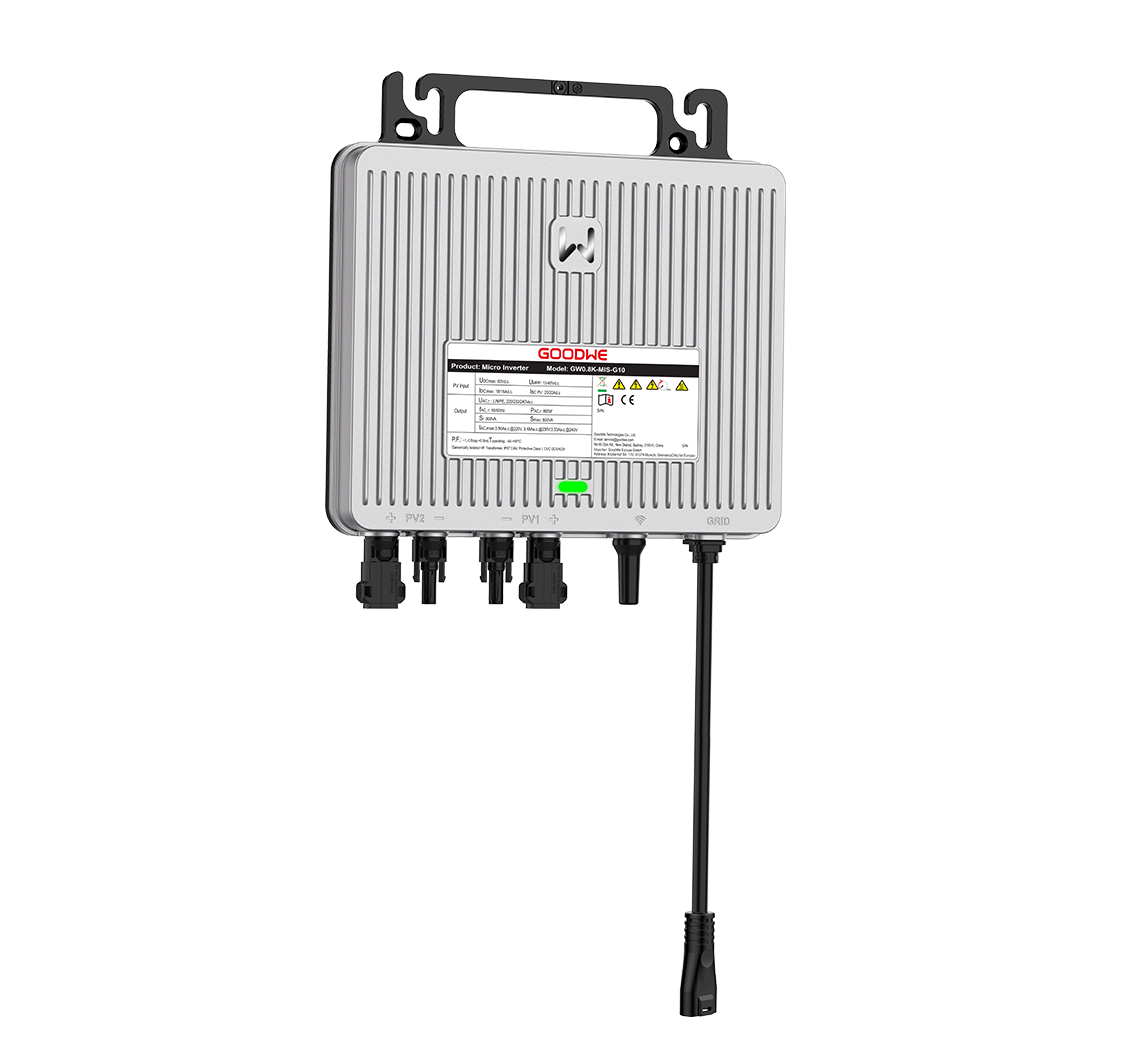

The GoodWe MIS Series micro-inverter is designed for versatile residential solar applications, including balconies, rooftops, and other small-scale installations. With dual MPPTs supporting up to 18A input and a wide 13–60V operating range, it offers strong adaptability for both compact low-power panels and larger high-current photovoltaic modules. Built-in Wi-Fi and Bluetooth, combined with advanced Wi-Fi Mesh technology, provide reliable communication for up to 25 devices without requiring a gateway, making system setup simpler and more cost-effective. Intelligent operation and maintenance features such as remote firmware upgrades, component-level monitoring, and SEMS+ platform integration ensure efficient and transparent system management. Thanks to its plug-and-play design and low-voltage architecture (maximum 60V DC, startup at just 15V), the MIS Series enhances both safety and usability. It delivers continuous energy generation from sunrise to sunset while offering robust protection against environmental and electrical challenges.
Plug-and-play design, simple installation
.png)
Sleek design, no visible screws or glue marks
Reliable system-level solution
Low start-up voltage (15V)
IP67
Plug & Play
Optimal Performance
GoodWe's microinverter MIS Series is crafted with individual MPPT control, resulting in a notable enhancement in power generation. The low startup voltage of 15V ensures continuous power generation from sunrise to sunset, optimizing solar energy utilization regardless of varying irradiation and weather conditions.
15V startup voltage
2 MPPTs channels, component monitoring
Superb Safety & Reliability
MIS Series microinverters prioritize safety and reliability with a range of features. These include integrated grid protection relays, ensuring grid stability even during fluctuations. With a maximum DC voltage of 60V, they eliminate high DC voltage risks. The IP67 ingress protection shields them from harsh environmental conditions, and their design ensures there's no single point of system failure, guaranteeing uninterrupted operation.
IP67 ingress protection
AC side three-level lightning protection
OVERVIEW
Model
GW0.8K-MIS-G10
Max. Input Voltage (V)
60
Max. Input Current per MPPT (A)
2 × 18
Number of MPP trackers/Number of Strings per MPPT
2 / 1
Weight (kg)
3.4
Nominal Output Voltage (V)
L / N / PE, 220 / 230 / 240
Model
GW0.799K-MIS-G10
Max. Input Voltage (V)
60
Max. Input Current per MPPT (A)
2 × 18
Number of MPP trackers/Number of Strings per MPPT
2 / 1
Weight (kg)
3.4
Nominal Output Voltage (V)
L / N / PE, 220 / 230 / 240
