PLC 2.0
99.0% efficiency

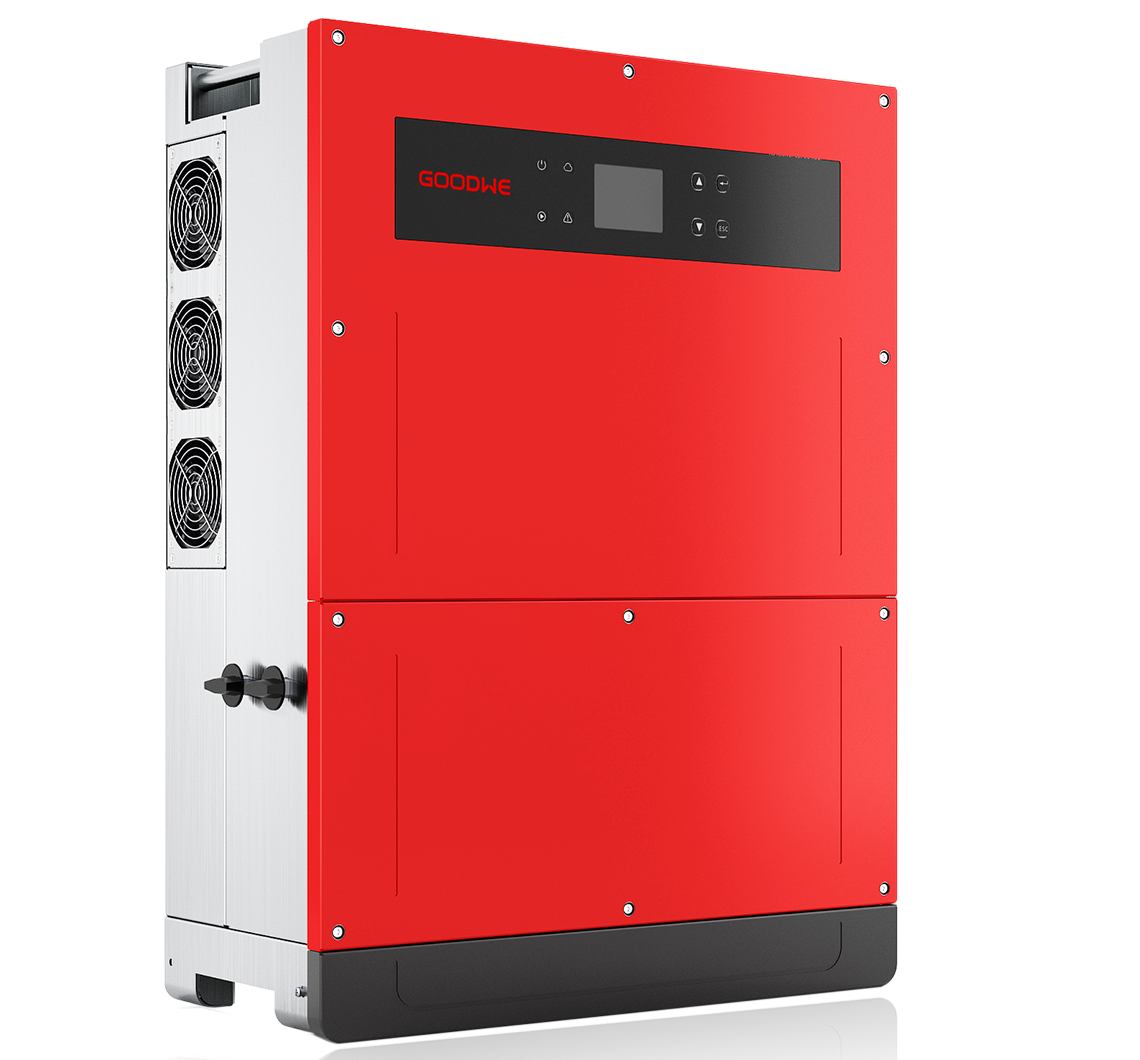

GoodWe MT series inverter is suited for medium and large scale commercial rooftops and ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, the Goodwe MT series of the new generation can provide a 150% continuous maximum AC output power overload, offering a faster return on investment. The start-up voltage is 200 V, much lower than other products, which makes the inverter start up earlier, therefore generating more power over time.
String level monitoring
Up to 150% DC input oversizing
Up to 115% AC output overloading
Up to 99% max. efficiency
Full-load running at 50ºC
Power line communication
PLC 2.0
99.0% efficiency
Four MPPTs Maximize Output
Improve your energy harvest with four MPP trackers to minimize output losses caused by partial shading and other mismatch effects.
High Generation
With 150% DC input oversizing capability, the MT allows users to significantly expand the solar array and drive increased power output even under low solar radiation.
150%
DC INPUT OVERSIZING
115%
AC OUTPUT OVERLOADING
OVERVIEW
Model
GW80K-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
44
Number of MPP trackers/Number of Strings per MPPT:
4/4-3
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW75K-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
44
Number of MPP trackers/Number of Strings per MPPT:
4/4-3
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW80KHV-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
44
Number of MPP trackers/Number of Strings per MPPT:
4/4
Max. Efficiency
99.0%
Nominal Output Voltage (V)
540,3L/PE
Model
GW70KHV-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
33
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency
99.0%
Nominal Output Voltage (V)
500,3L/PE
Model
GW80KBF-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
39
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency
99.0%
Nominal Output Voltage (V)
540,3L/PE
Model
GW75KBF-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
44
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency
99.0%
Nominal Output Voltage (V)
500,3L/PE
Model
GW60KBF-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
44
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW50KBF-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
4/2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW60KN-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
33
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW50KN-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
33/33/22/22
Number of MPP trackers/Number of Strings per MPPT:
4/3-3-2-2
Max. Efficiency
98.7%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
