Type-tested Components
Plug & Play

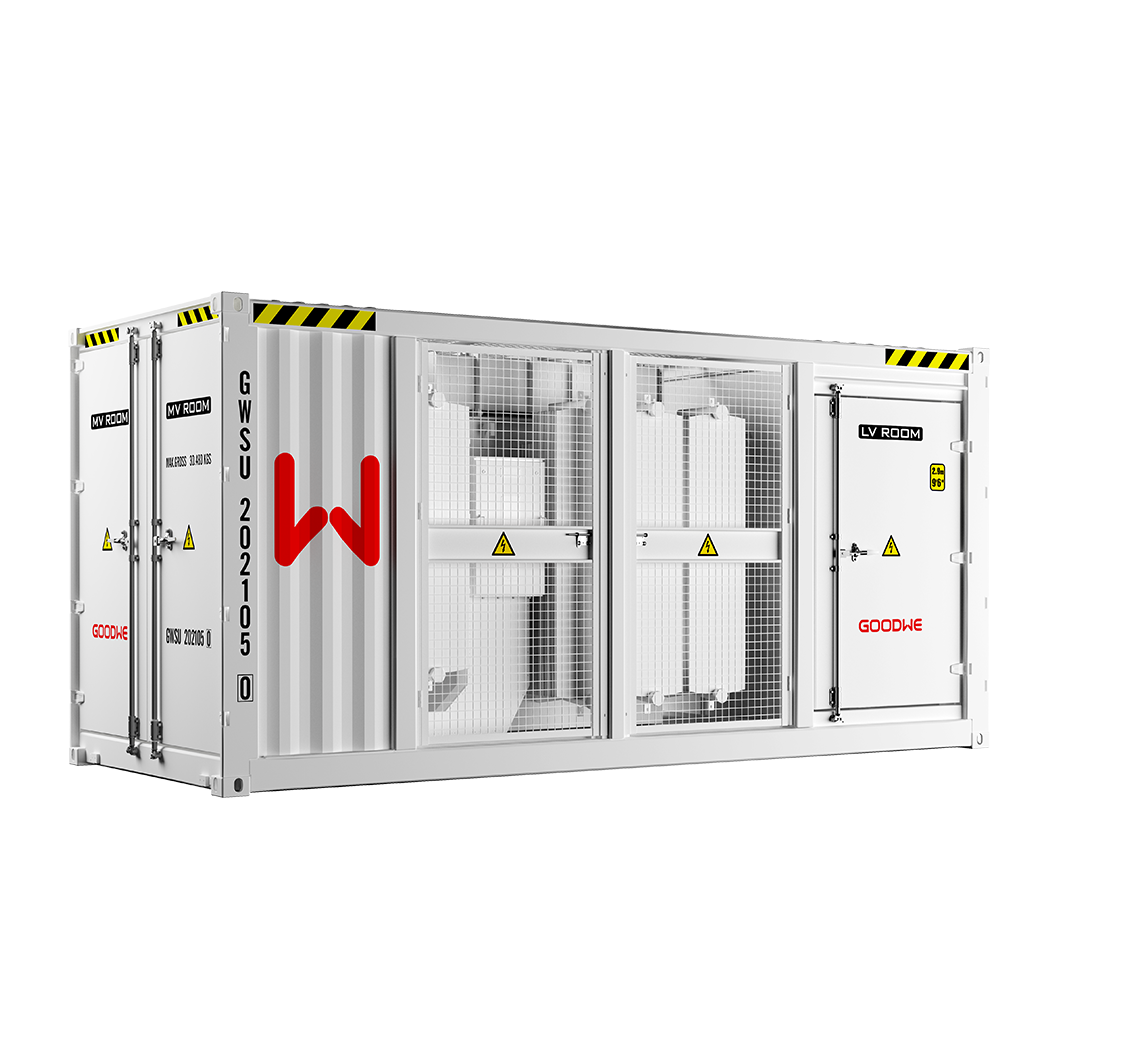

GoodWe Medium-voltage Station, a compact step-up power center, is capable of enduring various types of environments. It offers the highest power density in an energy-efficient and safe solution comprised of MV switchgear, transformer, and LV switchgear for power transformation in large-scale solar plants. The pre-assembled and cost-effective solution is integrated into a prefabricated 20ft container, ideal for easy transportation and quick installation. The Plug-and-Play design makes grid connection exceptionally easy and rapid, and the modular architecture allows for simplified maintenance. All contained electrical components are type-tested according to strict safety standards, providing safety for operators.
20ft container for easy transportation
Integrated modular design simplifying maintenance
Type-tested components of reliable quality
Outstanding adaption to extreme environments
Type-tested Components
Plug & Play
High Reliability & Safety
GoodWe Medium-voltage Station is a fully type-tested assembly that ensures high reliability and safety. It is designed to withstand various types of environmental conditions.
Type-tested components of reliable quality
Suitable for harsh environments
Easy Operation & Maintenance
With an integrated modular design, GoodWe Medium-voltage Station is a plug-and-play solution that guarantees maximum flexibility and improves ease of installation and maintenance.
Plug & play installation
Integrated modular design simplifying maintenance
Trustworthy Adaptability
*The MCCB model of UT needs to be selected separately.
Compatible with HT/UT Inverters*
Outstanding adaption to extreme environments
OVERVIEW
Model
GW7000K-MVS
Dimensions (W × H × D mm)
6058 × 2896 × 2438
Approximate Weight (t)
<22
Ingress Protection Rating
IP54
Operating Temperature Range (°C)
-25 ~ +55
Max. Operating Altitude (m)
1000 (Optional: 2000)
Model
GW5000K-MVS
Dimensions (W × H × D mm)
6058 × 2896 × 2438
Approximate Weight (t)
<22
Ingress Protection Rating
IP54
Operating Temperature Range (°C)
-25 ~ +55
Max. Operating Altitude (m)
1000 (Optional: 2000)
Model
GW3500K-MVS
Dimensions (W × H × D mm)
6058 × 2896 × 2438
Approximate Weight (t)
<22
Ingress Protection Rating
IP54
Operating Temperature Range (°C)
-25 ~ +55
Max. Operating Altitude (m)
1000 (Optional: 2000)
