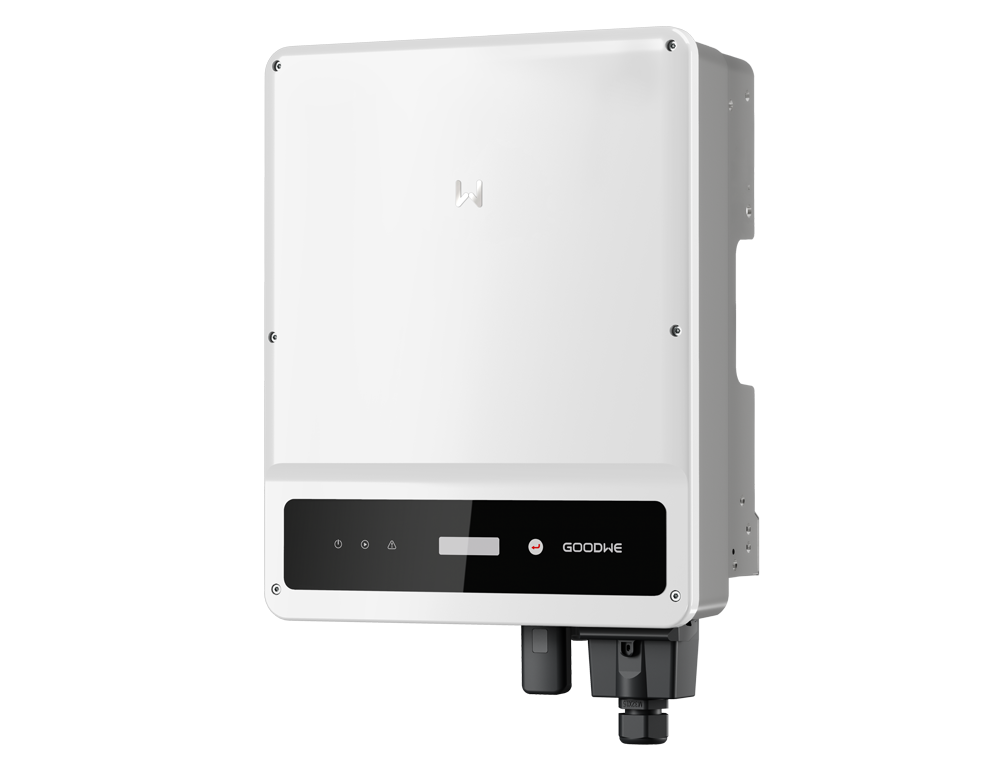

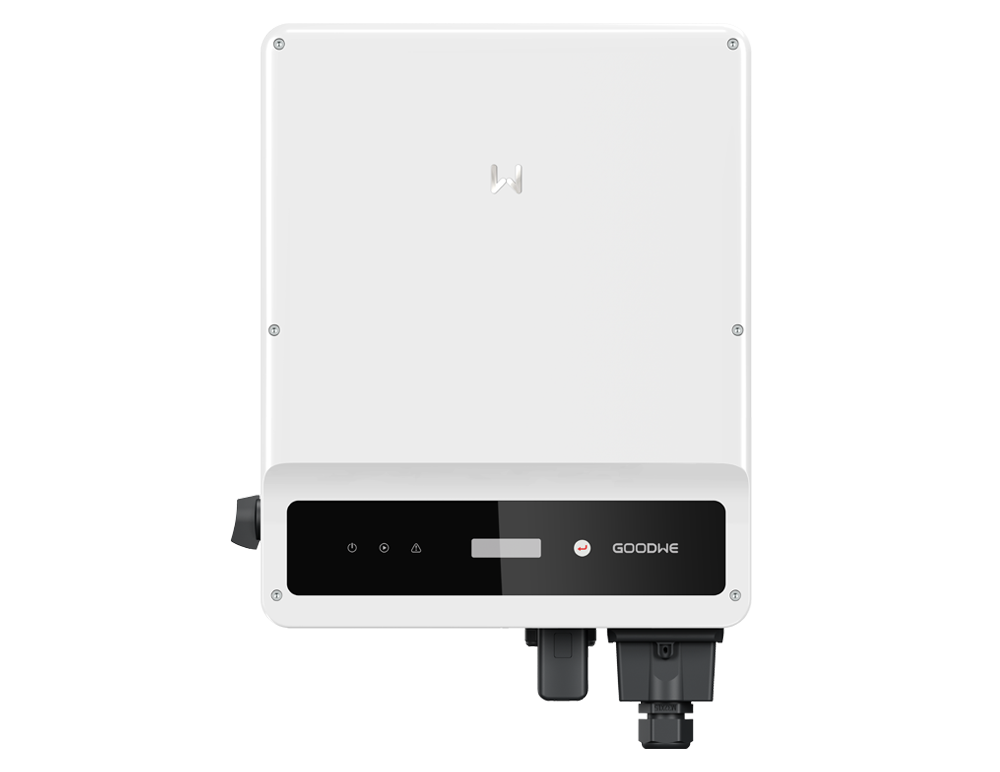

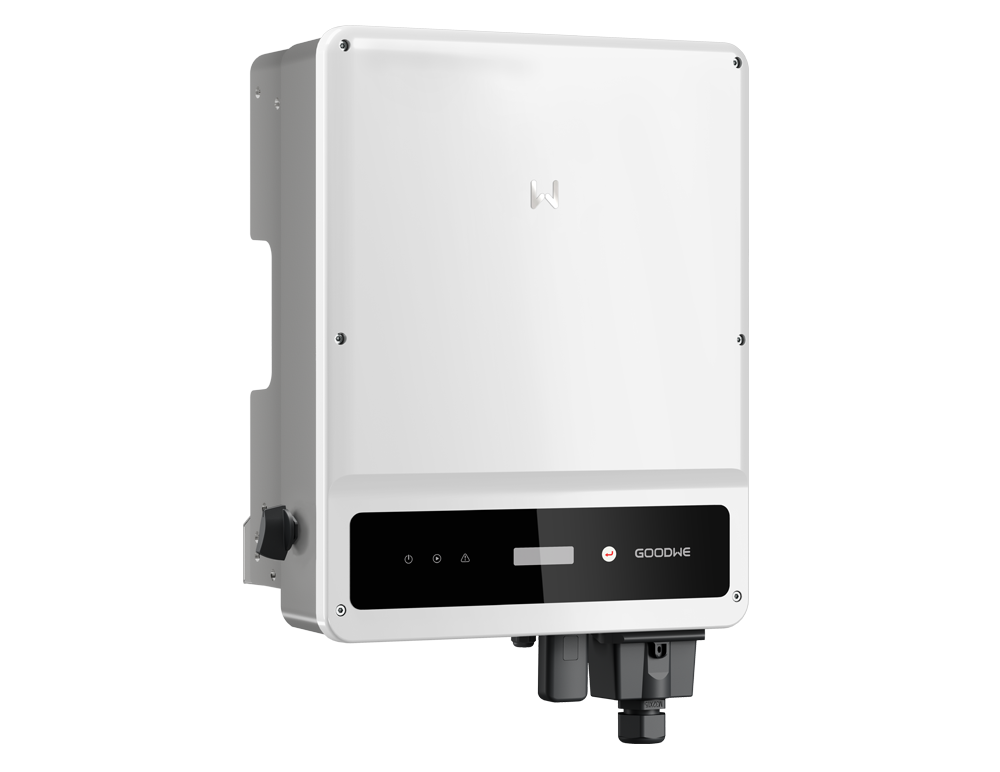

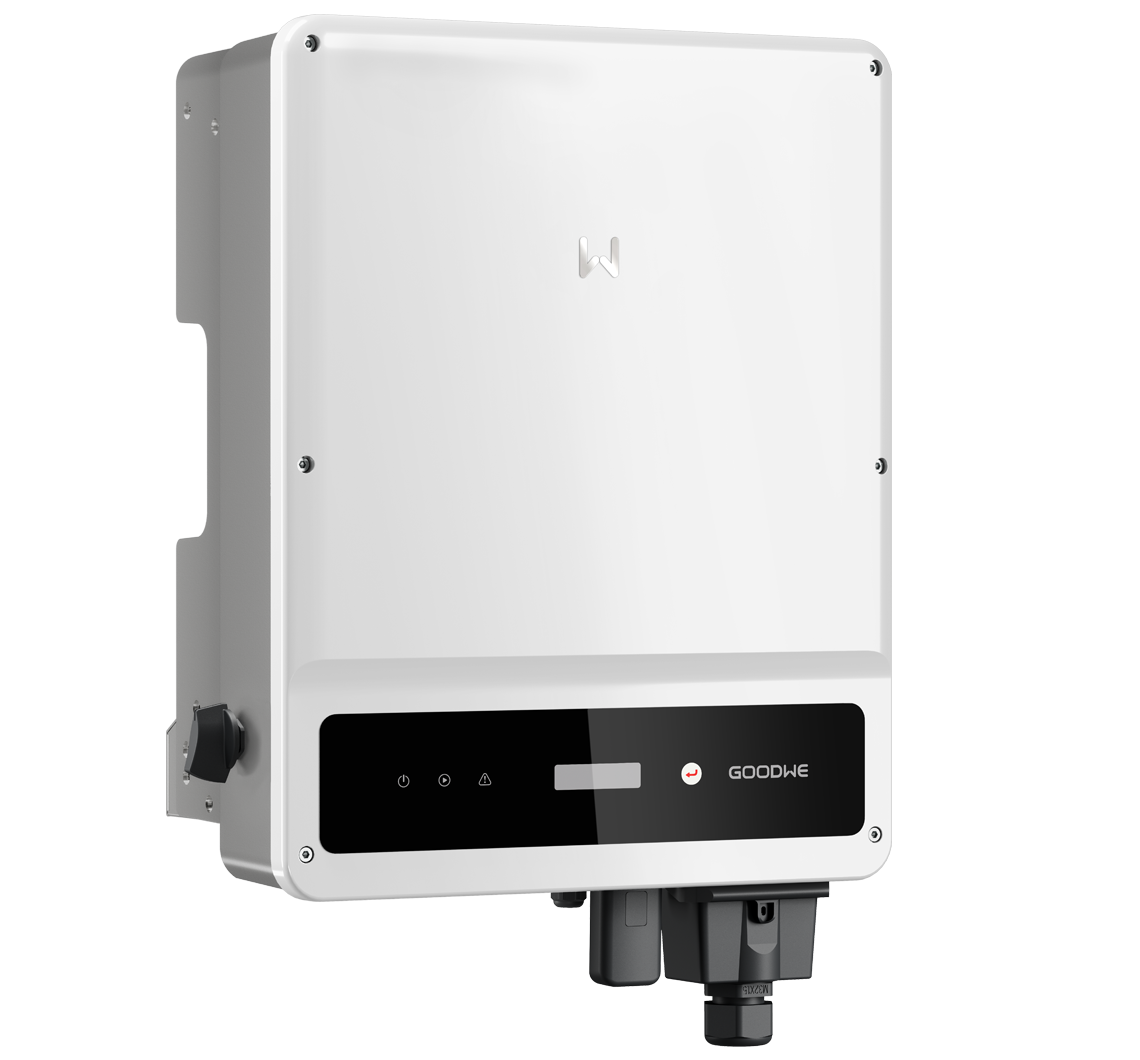

SDT G2 PLUS+ Series
String Inverter | 4 - 6 kW | 2 MPPTs | Three Phase
DOWNLOAD PDF >>
Fanless & quiet
Elegant & compact
Maximised energy yield for high-power PV rooftops
A perfect fit for three-phase residential and small commercial systems with high-power PV modules, the SDT G2 PLUS+ inverters allow for high current input up to 16A. The smaller inverters are designed for silent operation, while optional Type II surge protection on both AC and DC sides enhances overall safety. Smart energy management - including 24-hour load consumption monitoring - can be facilitated by adding the GoodWe HomeKit 3000.
Dynamic power export limit
Monitoring of the load consumption possible
Optional Arc Fault Circuit Interrupter (AFCI)
Optional surge protection SPD type II
Fanless & quiet
Elegant & compact
Highest Safety Standards
With optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. Optional Type II Surge Protection Device (SPD) on both sides protects the system from lightning hazards in extreme environments.
Optional AFCI
Optional surge protection SPD type II
Smart and efficient operation
Smart energy management - including 24-hour load consumption monitoring - can be facilitated by adding the GoodWe HomeKit 3000. Natural convection is the main cooling method for the smaller inverters, thereby facilitating silent operation.
Compatible with GoodWe HomeKit 3000
Smart energy readiness
Silent operation
Maximised energy output
The SDT G2 PLUS+ Series can generate 10% additional power compared to the nominal output, increasing the overall yield. The high input current maximizes the generation thanks to its compatibility with high-power PV modules. The low startup voltage extends the generation time from early morning to late evening.
110%
Increased Yield ( 110% AC power )
16 A
Up to 16 A max. DC Input Current Per String
OVERVIEW
Model
GW20K-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
26.0
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW17K-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
26.0
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW15K-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
26.0
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW12KLV-SDT-20
Max. Input Voltage (V)
800
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
26.0
Nominal Output Voltage (V)
220/127, 3L/N/PE
Model
GW12K-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
23.5
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW10K-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
20.5
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW8000-SDT-20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
20.5
Nominal Output Voltage (V)
380/400/415, 3L/N/PE
Model
GW6000-SDT-20
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
15.0
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW5000-SDT-20
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
15.0
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW4000-SDT-20
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
15.0
Nominal Output Voltage (V)
400, 3L/N/PE
