IP66 rating
Light & compact
Maximised energy yield for high-power PV rooftops

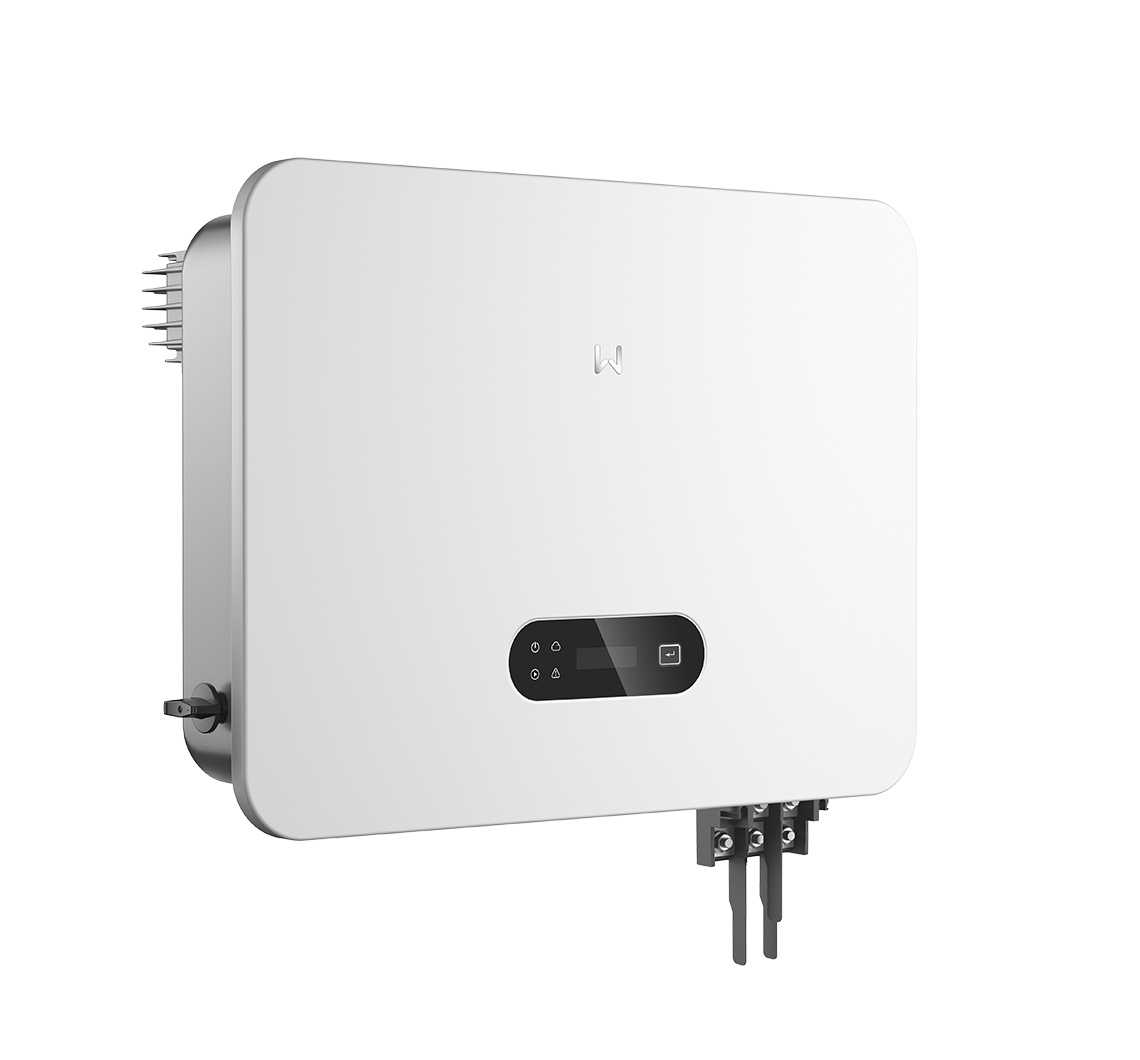

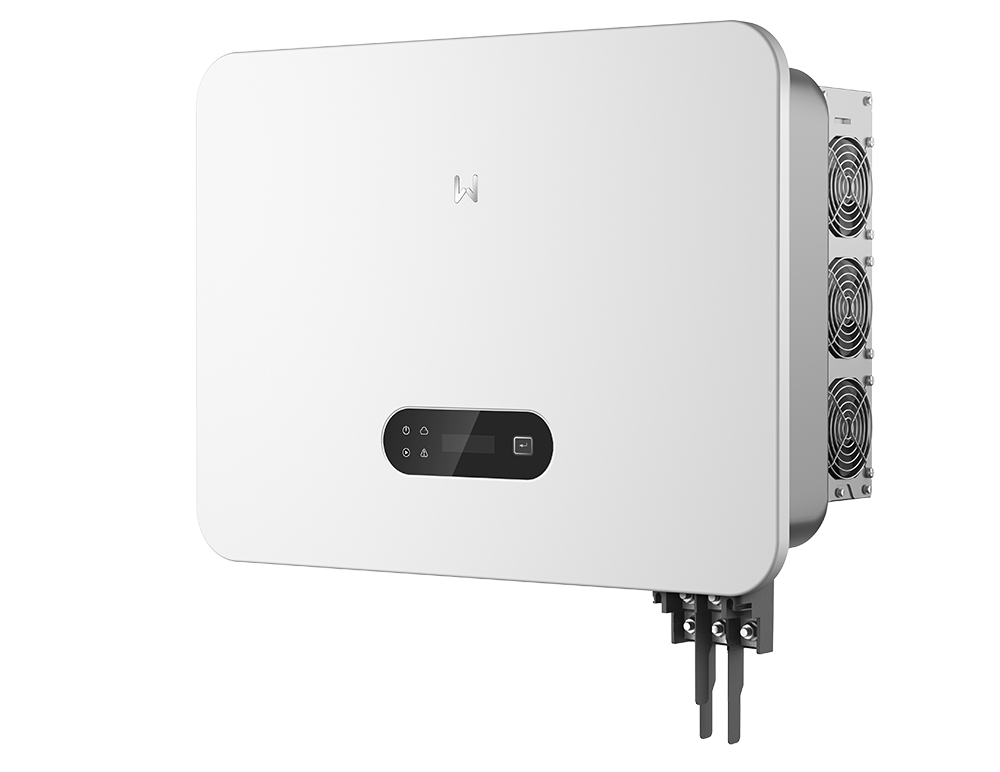

A perfect fit for three-phase commercial and industrial (C&I) systems with high-power PV modules, the SDT G3 inverters, available in 50kW, allow for high current input. The inverters are designed for silent operation, while the integrated Type II surge protection on both AC and DC sides enhances overall safety. With its compact 33 kg design, the inverter is lightweight, making installation and maintenance straightforward.
Maximised energy output
Smart and silent operation
Enhanced performance
Highest safety standards
IP66 rating
Light & compact
Maximised energy output
The SDT G3 delivers maximised energy output by allowing up to 180% PV input oversizing, enabling more solar panels to be connected for increased generation. Each string can handle up to 21A of DC input current, ensuring optimal utilization of available solar power. With a maximum efficiency of 98.7%, the SDT G3 converts more of the captured sunlight into usable electricity, helping businesses get the most from their solar investment.
180% PV input oversizing
Up to 21 A max. DC input current per string
Max. efficiency 98.7%
Highest safety standards
With optional AFCI, the inverter detects arc fault failures, sends alarms through monitoring systems, and breaks the circuit. Type II Surge Protection Device (SPD) on both AC and DC sides protects the system from lightning hazards, enhancing overall safety.
AI-driven AFCI 3.0 for safety
Type II Surge Protection on DC and AC sides
IP66 rating
OVERVIEW
Model
GW50K-SDT-C30
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
40
Number of MPP trackers/Number of Strings per MPPT
4/2
Max. Efficiency
98.7%
Nominal Output Voltage (V)
220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE
-576.jpg)
