High power denstity
6 MPPTs
High and reliable energy yield for commercial PV rooftops

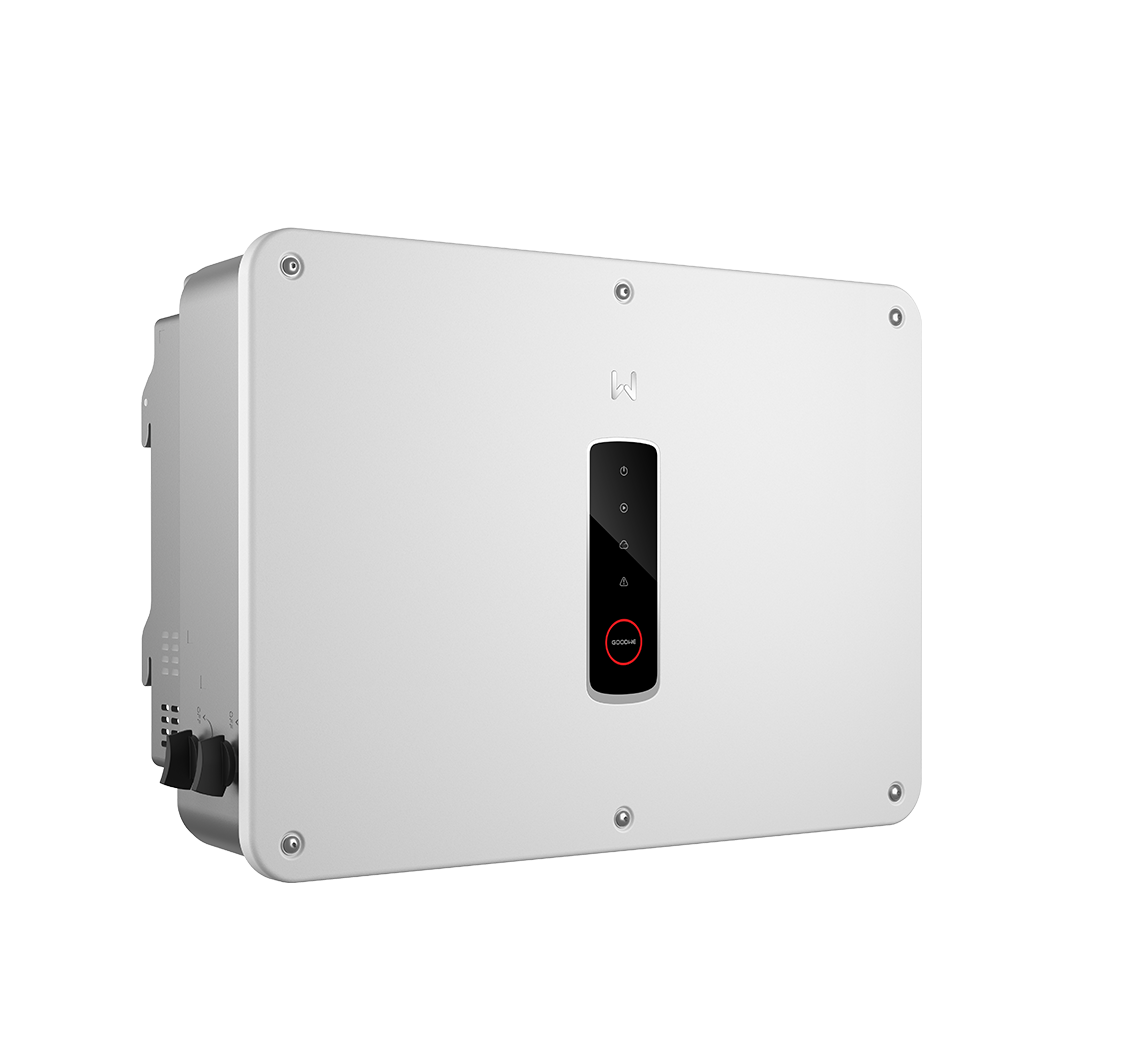

The SMT 80kW Series string inverter presents an excellent solution for commercial and industrial (C&I) applications, offering enhanced productivity through increased energy yields and remarkable power density. It is specifically designed to accommodate high-power PV modules, featuring 6 MPPTs and a high input current of 21A per DC string, resulting in improved overall yield. Safety remains our top priority and both the DC and AC sides of the inverter are equipped with Type II surge protection.
Max. 21A DC input current per string
Up to 150% DC input oversizing
Optional AFCI 3.0 and PID functions
Optional IP66 and C5
High power denstity
6 MPPTs
High Power Generation for High Returns
The SMT series features an impressive 150% DC input oversizing capacity which allows full load output during extreme weather conditions. Increasing to 6 MPP trackers guarantees optimal energy production even under lower solar radiation. Furthermore, the inverter achieves a maximum efficiency of 98.6%, ensuring excellent performance and energy utilization.
6 MPPTs
150% DC input oversizing
Smart Control & Monitoring
The SMT series is compatible with multiple communication methods including ModbusTCP and Bluetooth to ensure stable communication and faster response. In addition, users can enjoy smart energy management with remote consumption monitoring. Smarter functions, easier experiences.
Remote data monitoring
Compatible with multiple communication methods
Highest safety standards
With its robust design, the inverter can easily handle rough environments. Along with the integrated AFCI 3.0 protection, the surge protection device protects the installation components and ensures safe operation. The inverter is equipped with both DC and AC Type II surge protection and with optional PID recovery.
Typ II Surge Protection on DC and AC sides
Optional AFCI 3.0 and PID
OVERVIEW
Model
GW80K-SMT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
42
Number of MPP trackers/Number of Strings per MPPT:
6/2
Max. Efficiency
98.6%
Nominal Output Voltage (V)
220/380, 230/400, 3L/N/PE or 3L/PE
