C&I storage
LFP cells
Reduced energy cost and uninterrupted power supply for C&I applications

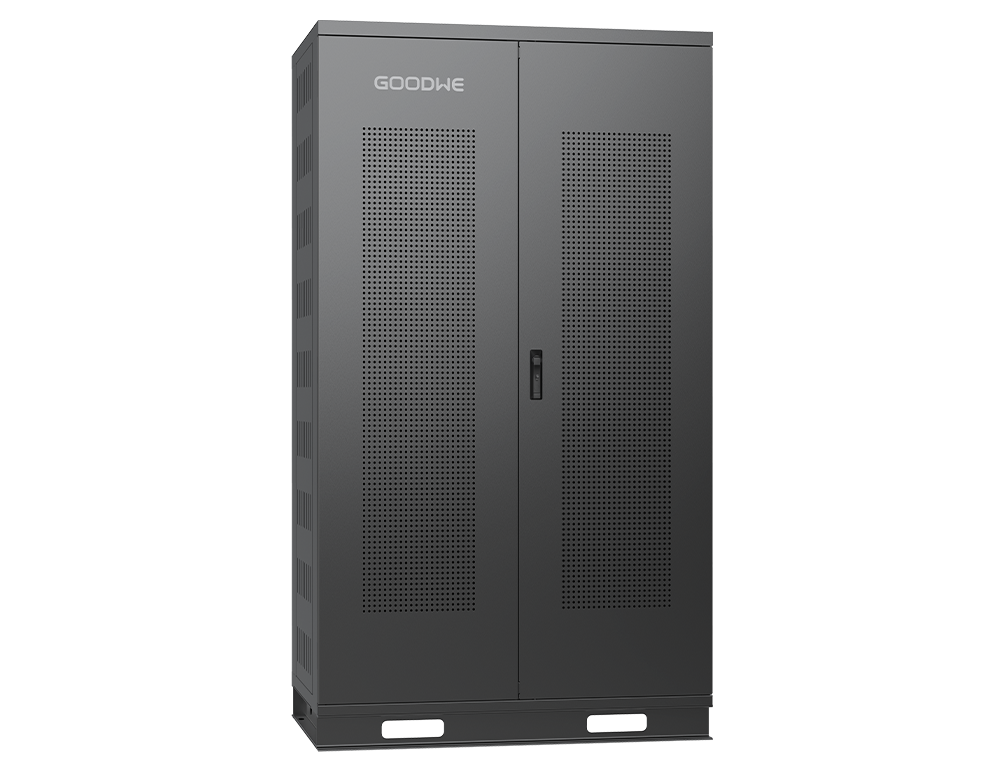

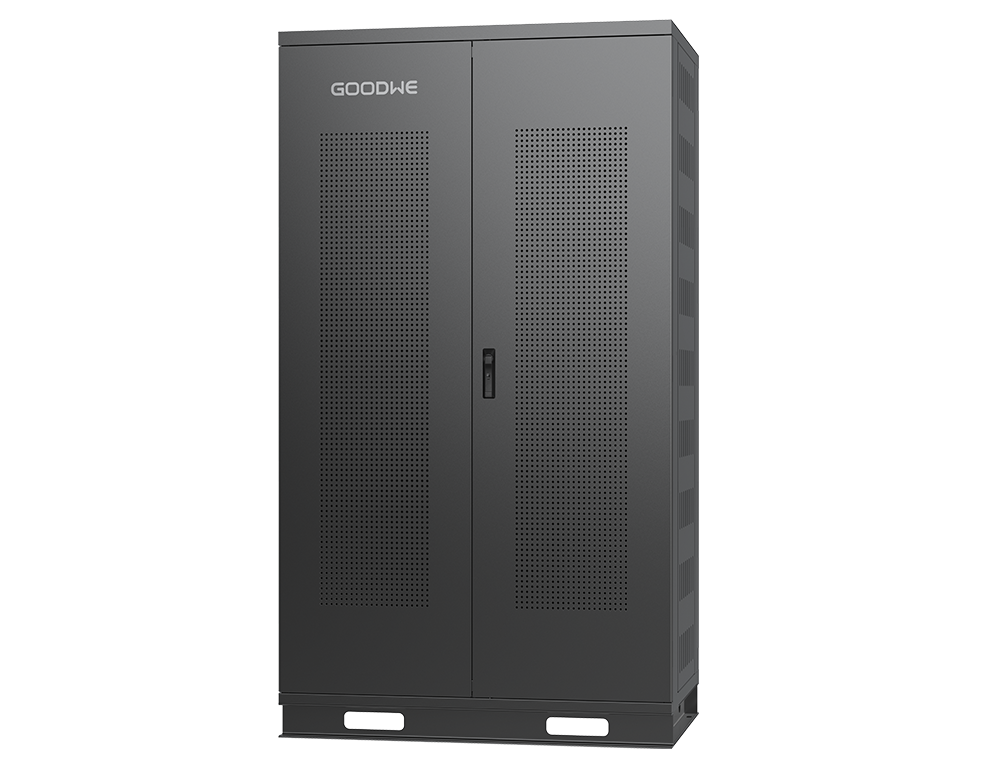

Commercial and industry (C&I) energy storage solutions are increasingly deployed by companies to encounter rising energy cost, maintain stable operating conditions and secure competitiveness. In addition to increased self-consumption of generated PV power to lower the electricity bill, the GoodWe energy storage systems allow users to level out peak demands and avoid additional grid fees. Lynx C combines with GoodWe hybrid inverters ETC / BTC to form a complete energy storage system for small and medium-sized C&I applications. The powerful backup capabilities of the GoodWe storage inverters deliver additional value to organisations with a strong reliance on uninterrupted power.
Reliable and safe LFP battery cells
Remote monitoring & updates via inverter
High energy density
Compatible with GoodWe commercial storage inverters
Up to 3 Lynx C in parallel (468kWh)
Easy to transport
C&I storage
LFP cells
Uninterrupted power supply
Lynx C is suitable for storage inverters with UPS level switching to backup mode in less than 10 ms, thereby enabling uninterruptible power supply for critical loads.
Supports UPS level switching < 10ms
Black start capability
Safe and efficient operation
Lithium iron phosphate (LFP) batteries are reliable and safe to use due to high chemical and thermal stability. Insulation resistance test is supported to prevent electrical shocks, ensuring the safety of personnel and reducing or eliminating downtime.
LFP battery cells
Insulation resistance test
Lower electricity cost, reduced peak demand
Combined with GoodWe commercial storage inverters, the HV battery system Lynx C enables a high degree of self-consumption. Supported by powerful inverter backup capabilities, unbalanced power output and peak-shaving, the C&I storage system facilitates lower cost while ensuring uninterrupted power.
65
Charge/Discharge power 42 - 65 kW
156
Modular design 101 - 156 kWh
3
Up to 3 Lynx C in parallel (468 kWh)
OVERVIEW
Model
LX C156-10
Usable Energy (kWh)
156.67
Nominal Voltage (V)
652.8
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Grounded
Enclosure Type
IP21
Model
LX C138-10
Usable Energy (kWh)
138.24
Nominal Voltage (V)
576.0
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Grounded
Enclosure Type
IP21
Model
LX C120-10
Usable Energy (kWh)
119.81
Nominal Voltage (V)
499.2
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Grounded
Enclosure Type
IP21
Model
LX C101-10
Usable Energy (kWh)
101.38
Nominal Voltage (V)
422.4
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Grounded
Enclosure Type
IP21
