20A / string
Silent operation
Flexible design options for maximised energy yield

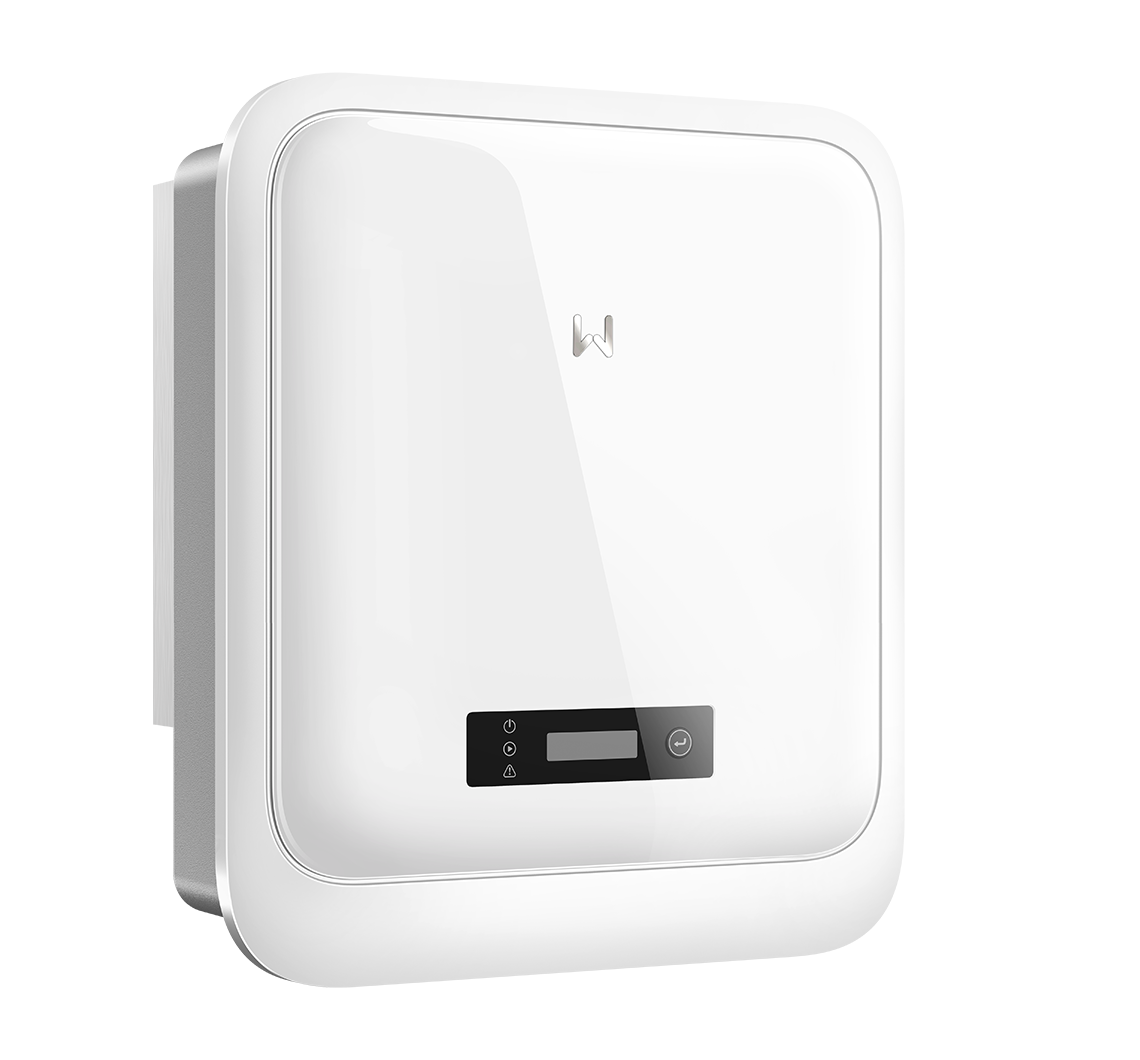

The MS G3 inverter is an ideal match for residential PV rooftops with a complex layout. With a total of three MPPTs, the inverter accomodates the required design flexibility while enabling high system efficiency. The low start-up voltage enables generation from early morning to late evening and the maximum current input of 20A per string ensures compatibility with high-power solar modules. Optional Arc Fault Failure Interrupter (AFCI) and optional Type II SPD protect the system from electrical fire and lightning hazards. Load monitoring and power export limiting can be provided with GoodWe Homekit 1000 and GM1000.
Up to 20A per string
Low start-up voltage
Smart energy management
SG-ready
Optional AFCI function
Optional SPD type II (DC side)
20A / string
Silent operation
Smart and efficient operation
With the MS G3 inverter, owners of residential PV systems benefit not only from a sophisticated and elegant inverter, but also from a device that is compatible with SG-ready devices, such as heatpumps, for integration into Smart Home systems. The power export limiting and load monitoring can be easily added with the optional GoodWe HomeKit1000 or GM1000. Natural convectiion cooling facilitates quiet and efficient operation, ideal for residential inverters.
24-hour load consumption monitoring
Smart load control with dry contacts
Silent operation with natural convection
Highest safety standards
Optional Type II Surge Protection Device (SPD) on the DC side protects the system from lightning hazards.With optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure for immediate shut-down of the inverter operation.
Optional AFCI function
Optional SPD type II
IP66 rating
Maximised energy output
The MS G3 inverter enables power generation from early morning to late evening, with a start-up voltage of only 50V. The maximum current input per string of 20A makes the inverter compatible with high-power modules. A total of three MPPTs bring improved system design flexibility and higher energy harvest levels.
50 V
Low start-up voltage
20 A
Up to 20A per string
3 MPPT
Three MPPTs
OVERVIEW
Model
GW10K-MS-30
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
19
Nominal Output Voltage (V)
220/230/240
Model
GW8500-MS-30
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
19
Nominal Output Voltage (V)
220/230/240
Model
GW7000-MS-30
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
19
Nominal Output Voltage (V)
220/230/240
Model
GW6000-MS-30
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
19
Nominal Output Voltage (V)
220/230/240
Model
GW5000-MS-30
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
19
Nominal Output Voltage (V)
220/230/240
