IP66 rating
Light & compact
Lightweight, low-noise inverter for cost-effectiv C&I rooftops

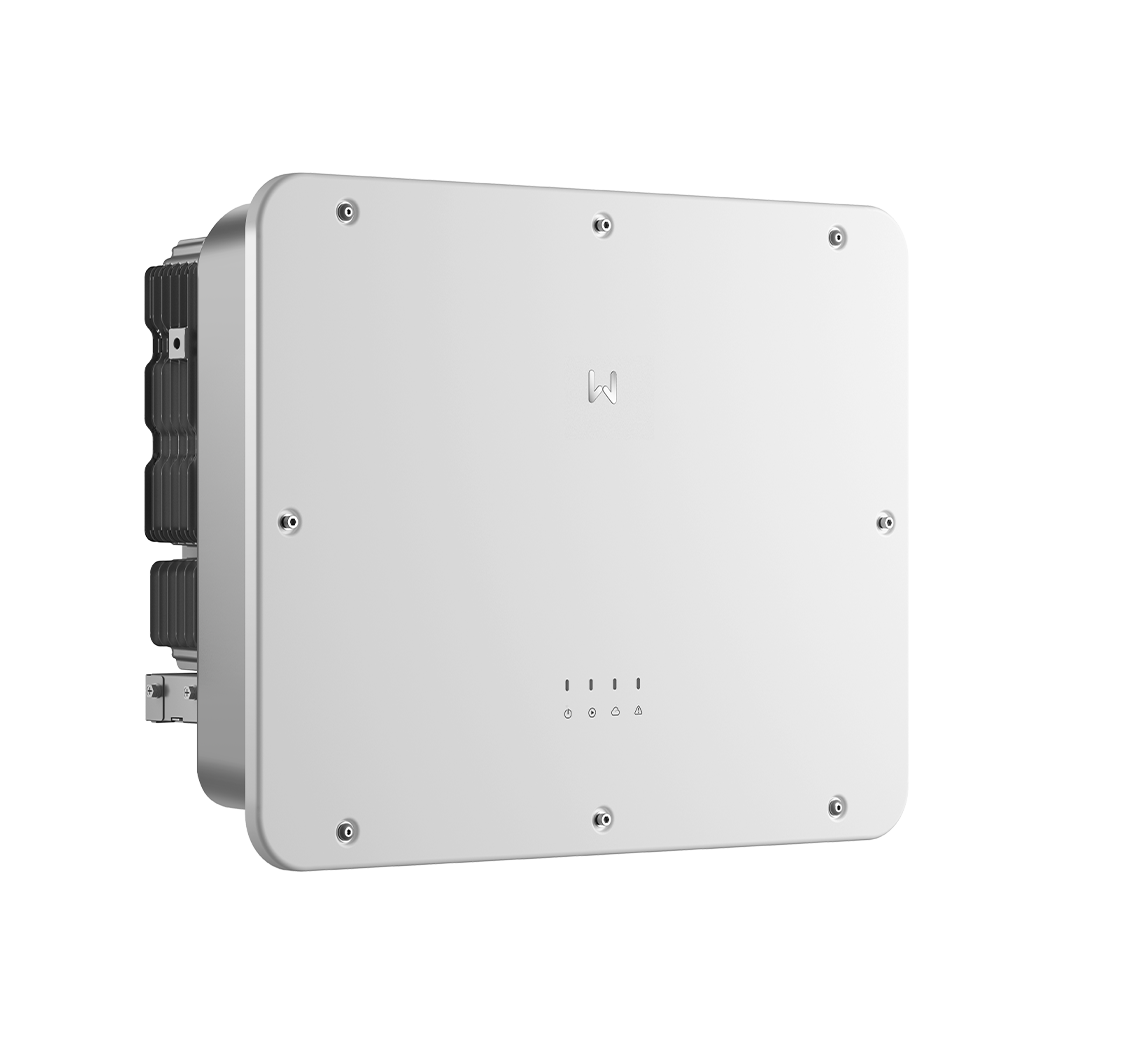

The SMT G2 60kW string inverter presents an excellent solution for small and medium-sized commercial and industrial (C&I) applications. It is specifically designed to accommodate high-power PV modules, featuring 4 MPPTs and a high input current of 21A per DC string, resulting in improved overall yield. With a weight of only 42kg and exceptionally quiet operation, it's perfectly suited for installations in noise-sensitive environments.
Maximised energy output
Smart and silent operation
Enhanced performance
Highest safety standards
IP66 rating
Light & compact
High power generation for high returns
Designed for maximum system flexibility, the SMT G2 series offers 150% DC input oversizing capability, maintaining full-load operation in extreme weather conditions. The 21 A per string input supports high-current modules, and four independent MPP trackers enhance energy yield under varying irradiance. With a maximum efficiency of 98.8%, the inverter ensures superior performance and energy conversion.
150% PV input oversizing
Up to 21 A max. DC input current per string
Max. efficiency 98.8%
Highest safety standards
With optional AFCI, the inverter detects arc fault failures, sends alarms through monitoring systems, and breaks the circuit. Type II Surge Protection Device (SPD) on both AC and DC sides protects the system from lightning hazards, enhancing overall safety.
AI-driven AFCI 3.0 for safety
Integrated surge protection SPD type II
IP66 rating
OVERVIEW
Model
GW60K-SMT-G20
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
42
Number of MPP trackers/Number of Strings per MPPT
4 / 2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
220 / 380, 230 / 400, 3L / N / PE or 3L / PE
