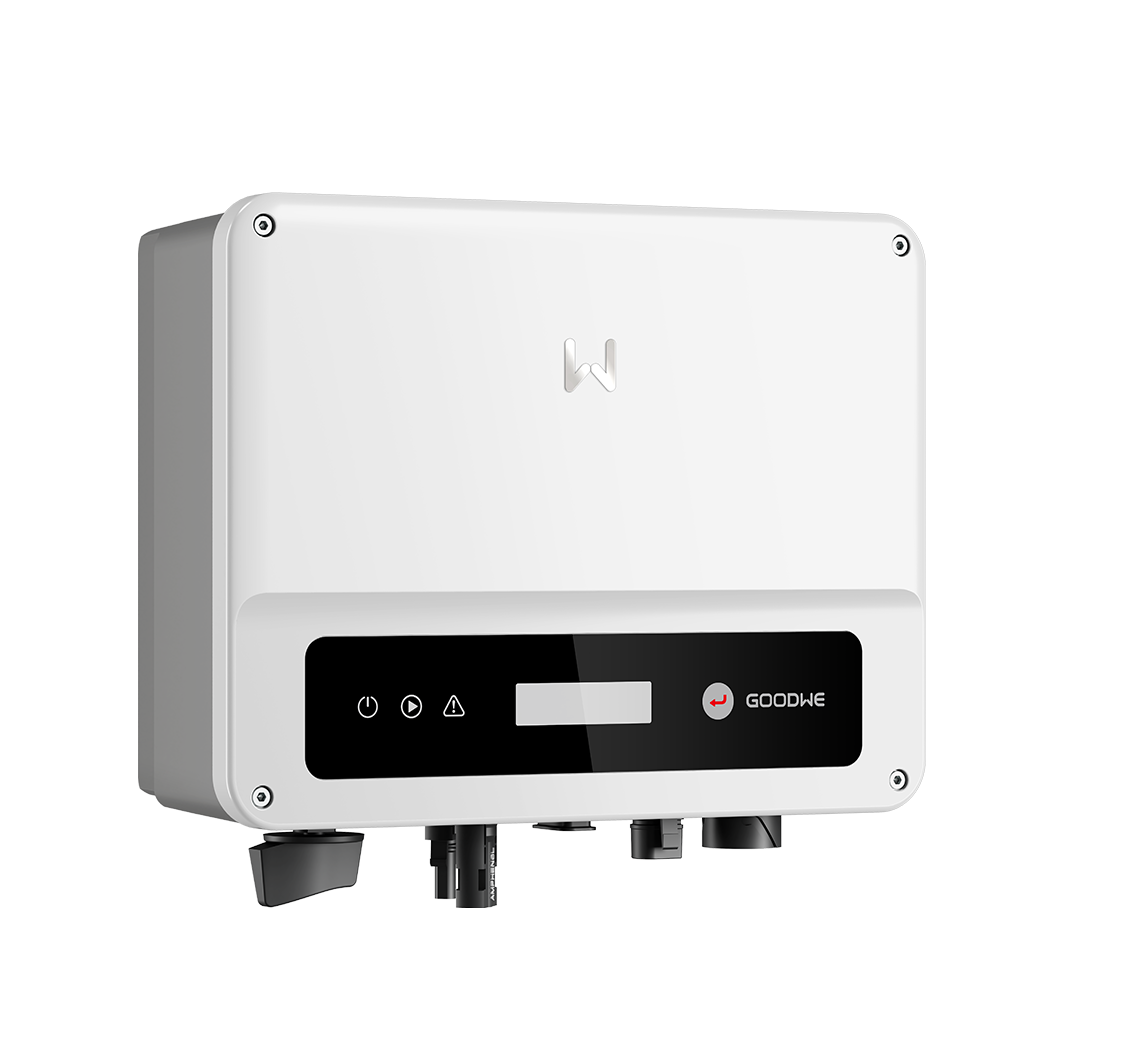

XS PLUS+ Series
String Inverter I 0.7 – 3 kW I 1 MPPT I Single Phase
DOWNLOAD PDF >>
Fanless & quiet
A4 size
Compact and silent inverter for modern homes
Designed for high energy yields and silent operation, the XS PLUS+ series is an ultra-small solar inverter for residential PV systems. Installed inside the house or on an outside wall, it supports multiple smart home integration protocols and is compatible with high-power modules, catering up to 15A. Additional functionalities, including power export limiting and load monitoring, can be provided with the GoodWe HomeKit 1000.
Load consumption monitoring
Power export limit
IP65 ingress protection
Quality and robust components
Fanless & quiet
A4 size
Maximised Energy Output
XS PLUS+ can generate up to 10% additional power compared to the nominal output, increasing the overall yield. Low start up voltage extends the genration time from early morning to late evening.
Increased yield ( 110% AC power )
Low start-up voltage
Modern and Compact Design
Weighing less than 6 kg, the inverter can be easily installed, and a compact A4 size and the fanless natural convection cooling is perfect for indoor installation.
Fanless design for quiet operation
A4 size with light weight
OVERVIEW
Model
GW3000-XS-11
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
220/230
Model
GW2500-XS-11
Max. Input Voltage (V)
500
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
220/230
Model
GW2000-XS-11
Max. Input Voltage (V)
500
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
230
Model
GW1500-XS-11
Max. Input Voltage (V)
500
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
230
Model
GW1000-XS-11
Max. Input Voltage (V)
500
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
230
Model
GW700-XS-11
Max. Input Voltage (V)
500
Max. Input Current per MPPT (A)
15
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
5.8
Nominal Output Voltage (V)
230
