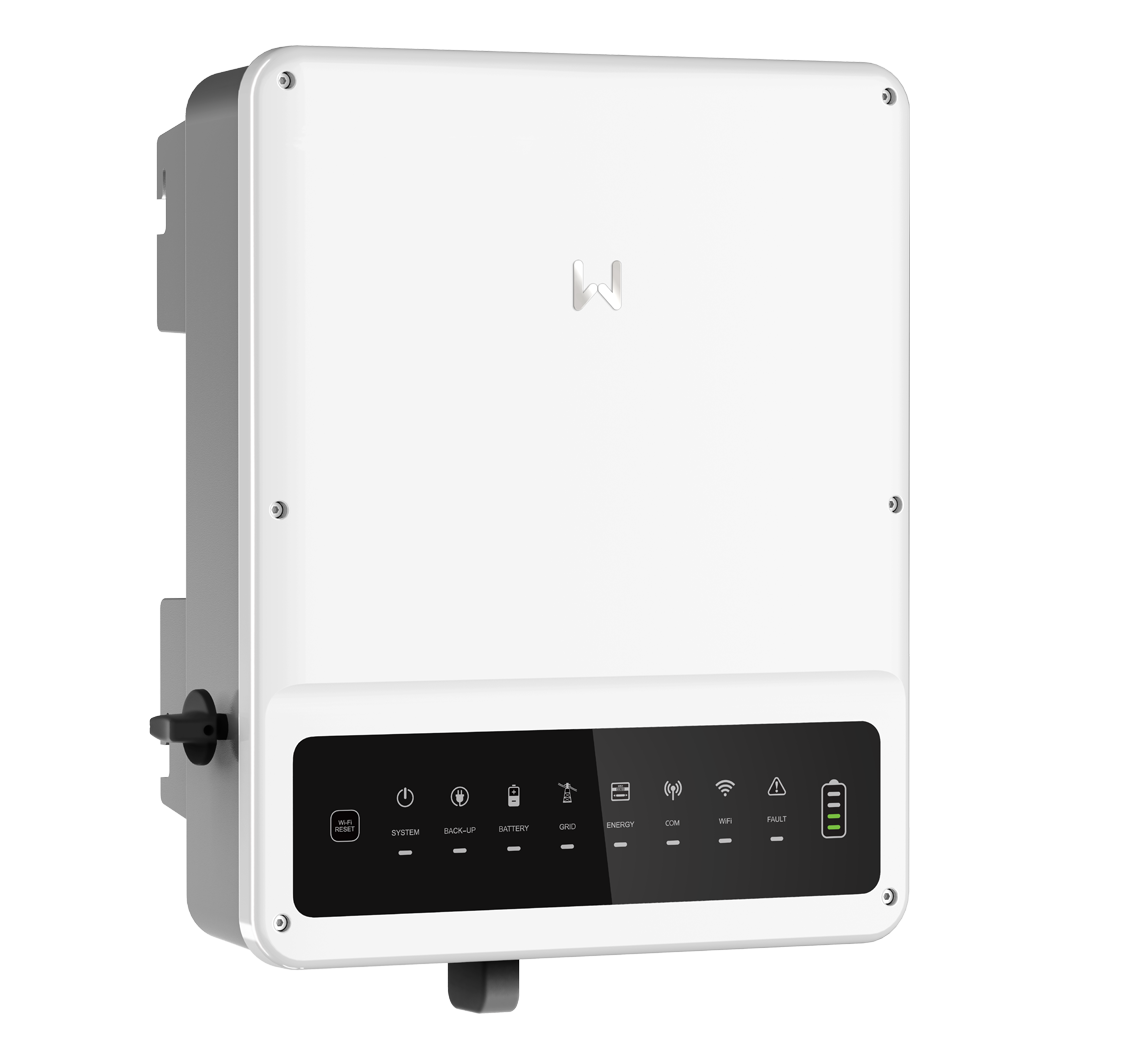

EH PLUS+ Series
Hybrid Inverter I 3.6 – 6 kW I 2 MPPT I Single Phase I HV
DOWNLOAD PDF >>
.png)
Fanless & quiet
Elegant & compact
Enhanced energy independence for owners of residential PV systems
Efficient solutions for solar power storage are the key to increased levels of energy autonomy. The EH PLUS+ hybrid inverters are designed to maximise energy output, enhance self-consumption, realise peak-shaving and provide a reliable backup power. Featuring a modern design that does not require fans for cooling, the operation is silent and reliable. An on-grid, battery-ready version of the inverter is available. The EH PLUS+ series is compatible with a range of batteries, including the GoodWe Lynx Home F PLUS+.
UPS level switching < 10ms
Smart home integration with multi-protocol communications
IP65 ingress protection
High quality components
Fanless & quiet
Elegant & compact
Smart and efficient operations
Integrated dynamic power export limit and load monitoring. Supports multiple communication protocols for smart home integration.
Smart home integration
Integrated load monitoring
Highest safety standards
Thanks to the in-built DC type II SPD, EH PLUS+ series can protect DC side from lightning strikes and save the cost of an external device.
IP65 ingress protection
Built-in Type II SPD on DC side
Optimised energy autonomy
High backup output power and battery charging power capabilities. Compatible with GoodWe Batteries and a wide range of HV battery brands.
6
High battery charging power 6 kW
10
UPS level switching < 10ms
OVERVIEW
Model
GW3600N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
3600/3960
Back-up Nominal Apparent Power (VA)
3600
Model
GW5000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000/5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW6000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000/6600
Back-up Nominal Apparent Power (VA)
6000
